Toyota PIXIS SPACE — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-B2110i201109-201205

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-B2030i201109-201205

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207i201109-201205

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86112i201109-201205

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-B2291i201109-201205

78183DCLAMP, ACCELERATOR CONTROL CABLE

main90044-64839i201109-201205

78183ECLAMP, ACCELERATOR CONTROL CABLE

main78183-B2050i201109-201205

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-B2060i201109-201205

9004120080

main90041-20080

9167180818

main91671-80818

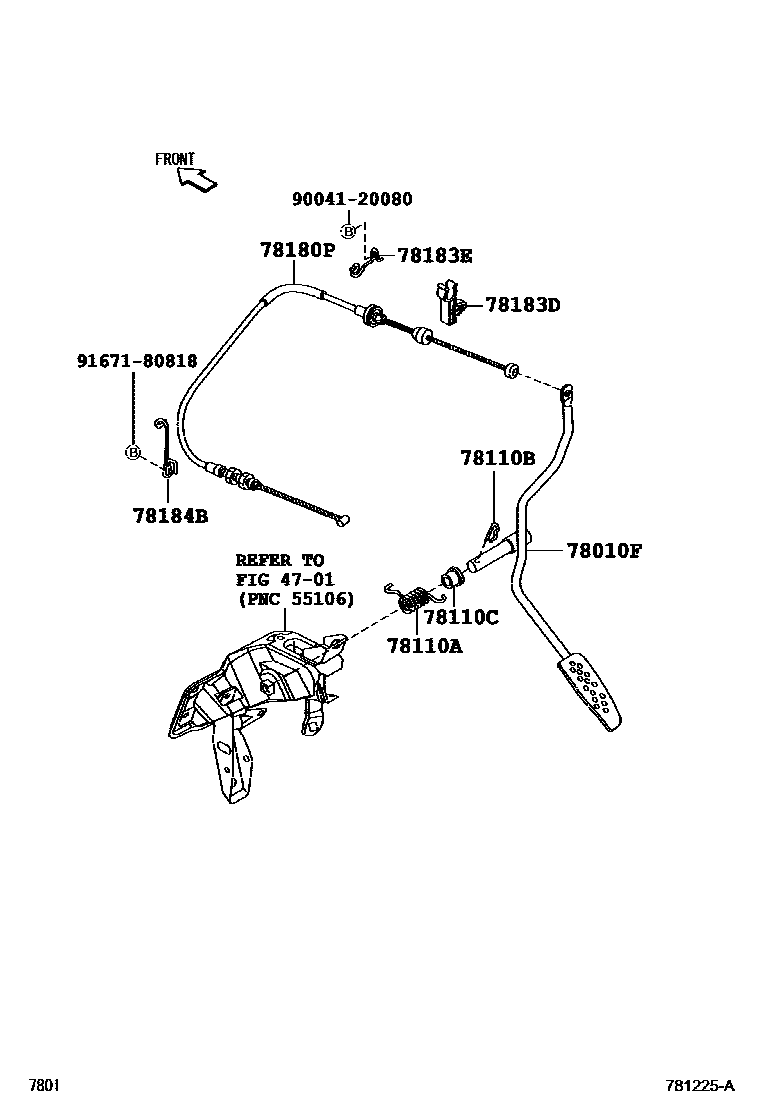

11 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota PIXIS SPACE

This section contains 13 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PIXIS SPACE. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL ROD), CLIP, ACCELERATOR BELLCRANK, BUSH (FOR ACCELERATOR PEDAL ROD).
