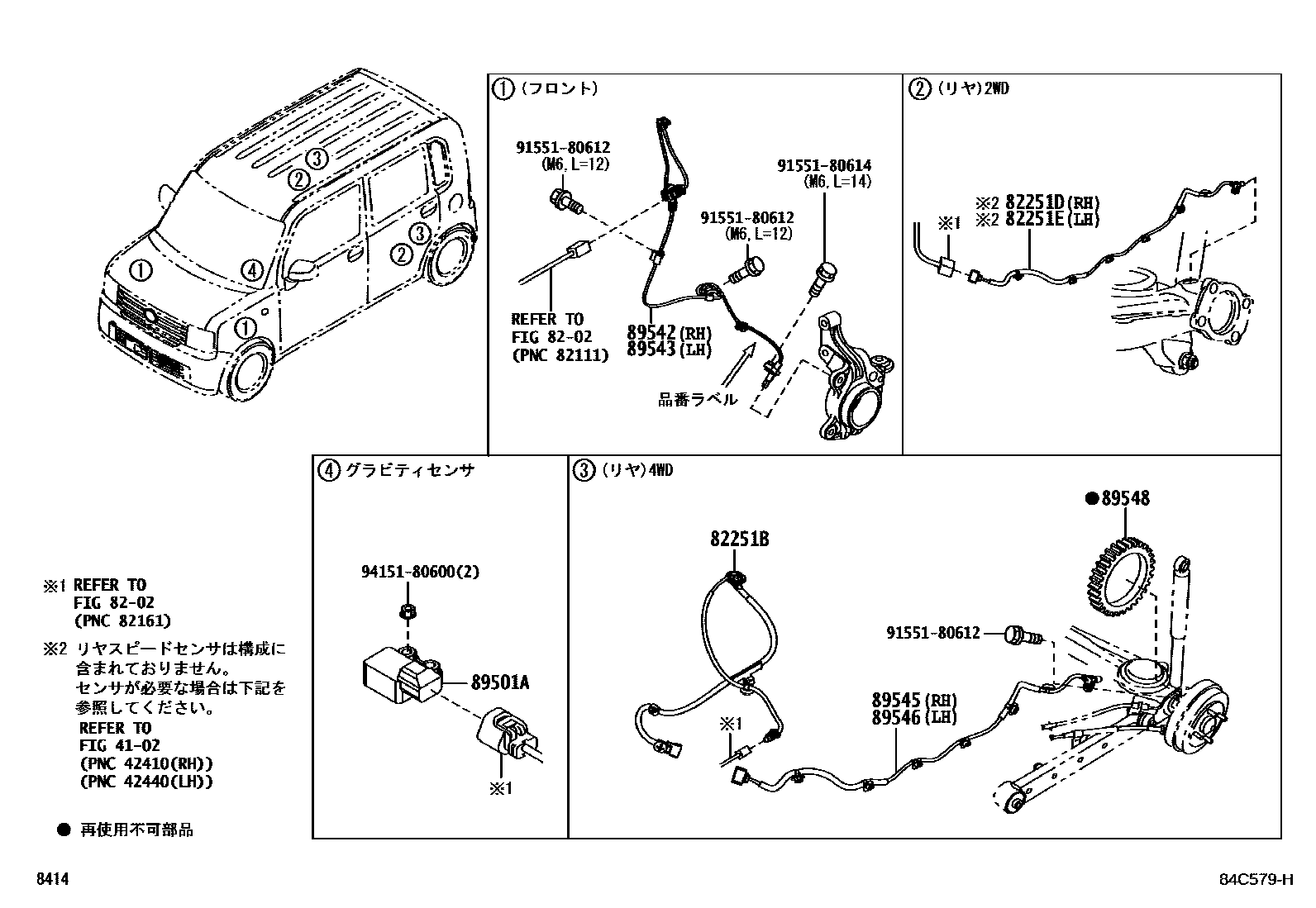

Toyota PIXIS SPACE — ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

82251BWIRE, SPEED SENSOR, REAR

main82251-B2090i201109-201204

82251DWIRE, SPEED SENSOR, RH

main82251-B2070i201109-201306

82251EWIRE, SPEED SENSOR, LH

main82251-B2080i201109-201306

89501ASENSOR, GRAVITY

main89549-97203i201109-201204

89542SENSOR, SPEED, FRONT RH

main89542-B2020i201109-201204

89543SENSOR, SPEED, FRONT LH

main89543-B2020i201109-201112

main89543-B2090i201112-201306

89545SENSOR, SPEED, REAR RH

main89545-B2030i201109-201204

89546SENSOR, SPEED, REAR LH

main89546-B2060i201109-201204

89548ROTOR, SKID CONTROL SENSOR

main89547-97506×2i201109-201306

9155180612

main91551-80612

9155180614

main91551-80614

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota PIXIS SPACE

This section contains 14 genuine Toyota parts for the ABS & VSC system of the Toyota PIXIS SPACE. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, WIRE, SPEED SENSOR, REAR, WIRE, SPEED SENSOR, RH, WIRE, SPEED SENSOR, LH.
