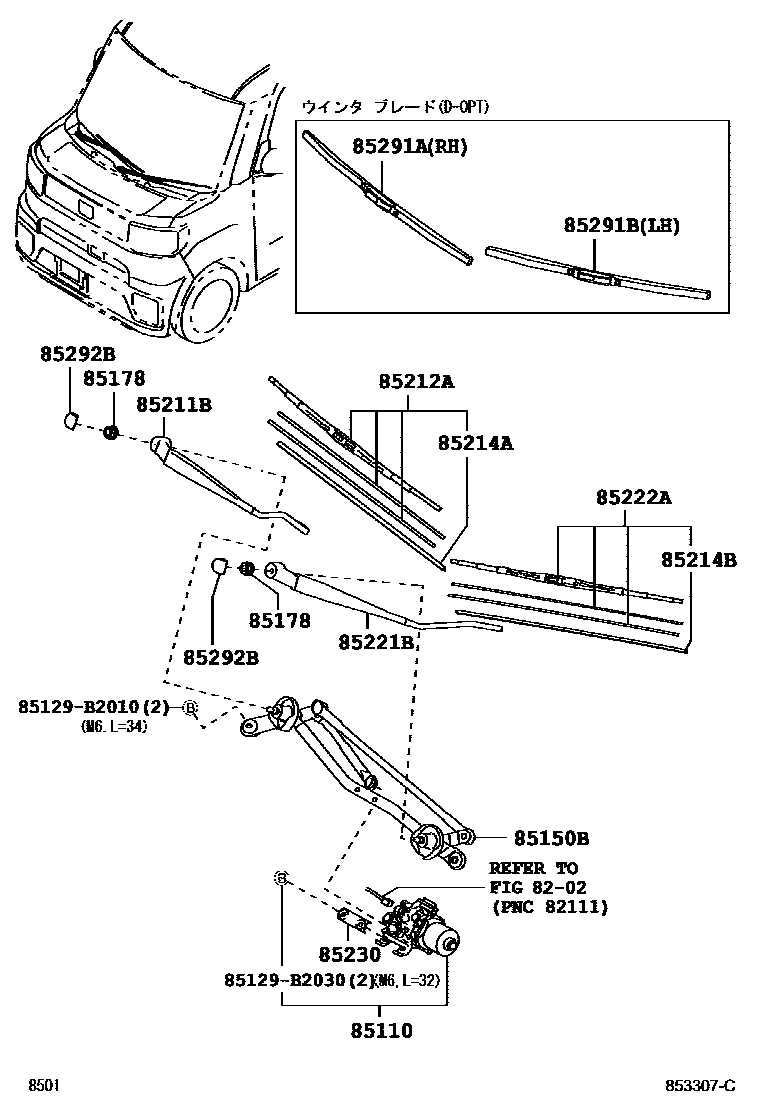

Toyota PIXIS MEGA — WINDSHIELD WIPER

8202WIRING & CLAMP

→ Go to FIG 82-02

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B2470supersedes 85110-B2460i201605

85150BLINK ASSY, WIPER

main85150-B2360supersedes 85150-B2350i201605

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2i201605-202202

main90041-79379×2i202203

85211BARM, FRONT WIPER, RH

main85211-B2320i201605

85212ABLADE, FR WIPER, RH

main85212-B2170i201605

85214ARUBBER, WIPER, RH

main85214-B2230i201605

85214BRUBBER, WIPER, LH

main85214-B2230i201605

85221BARM, FRONT WIPER, LH

main85221-B2320i201605

85222ABLADE, FR WIPER, LH

main85212-B2170i201605

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-B2010i201605

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-33050i201605

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050i201605

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2i201605

85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2010

85129B2030COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2030

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PIXIS MEGA

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PIXIS MEGA. Key components include: WIRING & CLAMP, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH.
