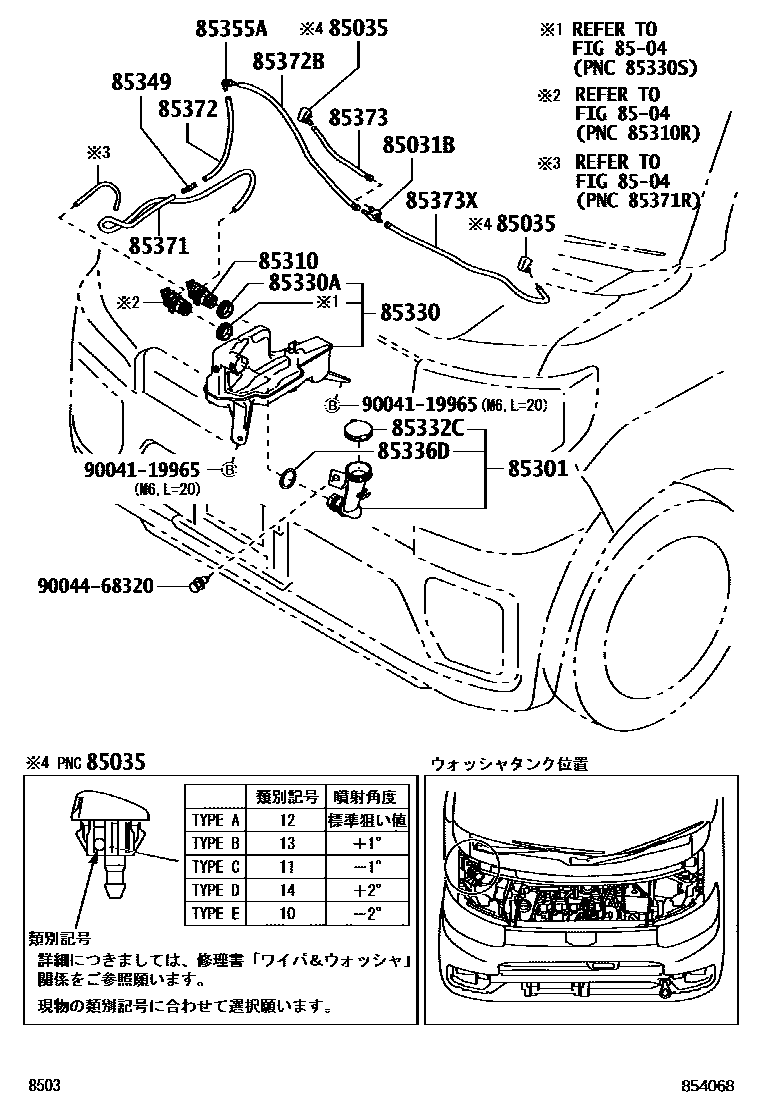

Toyota PIXIS MEGA — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CCAP, FRONT WASHER TANK
85336DPACKING, WINDSHIELD WASHER JAR
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85355AJOINT, WINDSHIELD WASHER ELBOW
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2
9004119965
main90041-19965
9004468320
main90044-68320
18 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota PIXIS MEGA
This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PIXIS MEGA. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
