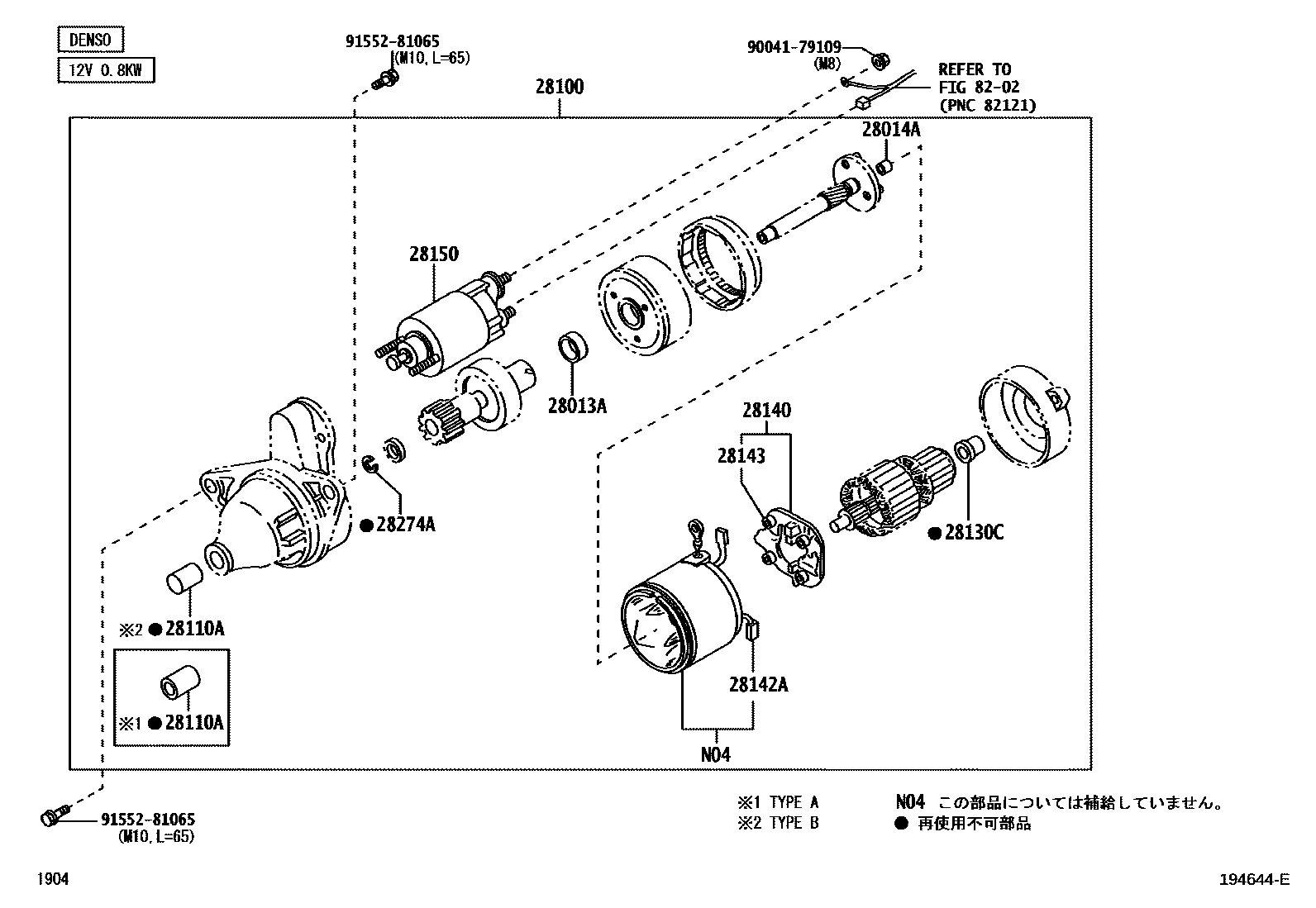

Toyota PIXIS MEGA — STARTER
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
28110ABEARING(FOR STARTER HOUSING)
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28274SNAP RING, STARTER, NO.1
28274ASNAP RING, STARTER, NO.2
8202WIRING & CLAMP
9004179109
main90041-79109
9155281065
main91552-81065
14 parts on this diagram · 4 diagrams in section
STARTER for Toyota PIXIS MEGA
This section contains 20 genuine Toyota parts for the STARTER system of the Toyota PIXIS MEGA. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, BUSH OR BEARING, PLANET CARRIER SHAFT, STARTER ASSY, BEARING(FOR STARTER HOUSING).
