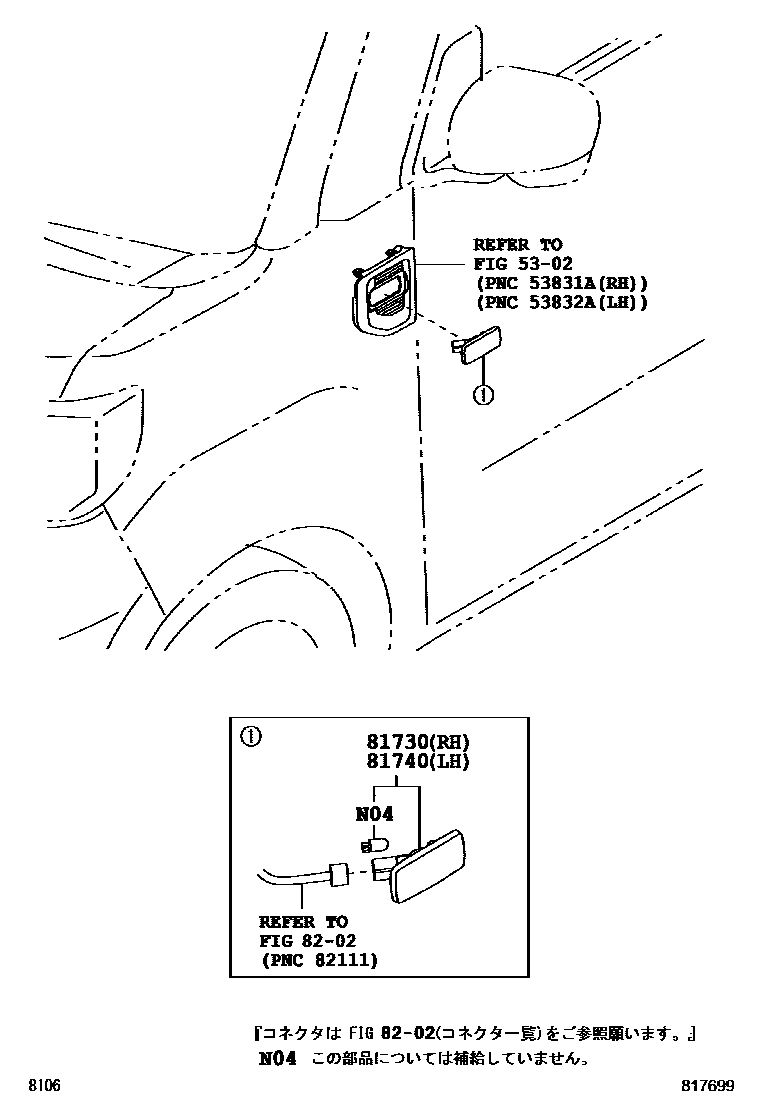

Toyota PIXIS MEGA — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-B2130i201605

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-B2130i201605

8202WIRING & CLAMP

→ Go to FIG 82-02

4 parts on this diagram · 1 diagram in section

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota PIXIS MEGA

This section contains 4 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota PIXIS MEGA. Key components include: HOOD & FRONT FENDER, LAMP ASSY, SIDE TURN SIGNAL, RH, LAMP ASSY, SIDE TURN SIGNAL, LH, WIRING & CLAMP.
