Toyota PIXIS MEGA — PARTIAL ENGINE ASSEMBLY

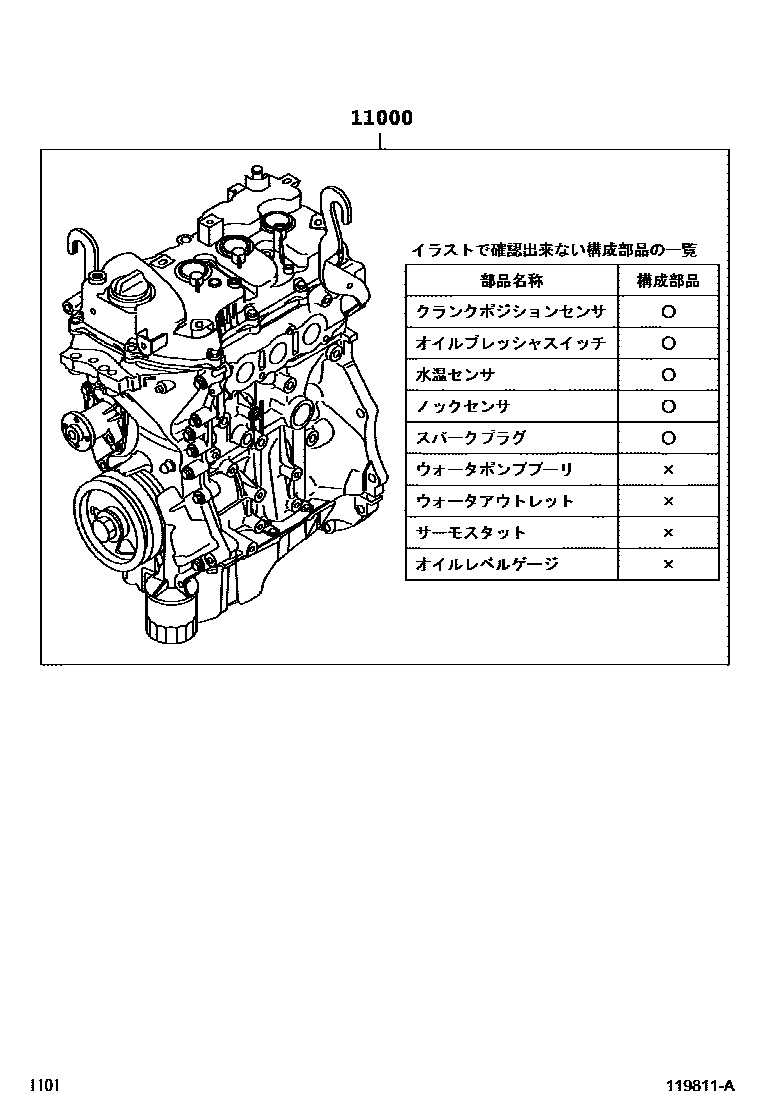

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-B2A21i201507-201602
main19000-B2A22i201605-201801
sub19000-B2A23
sub17107-B2082
sub94188-00841
main19000-B2A31i201507-201602
main19000-B2A32i201602-201605
main19000-B2A93i201801-201910
sub17107-B2082
sub94188-00841
main19000-B2A94i201910
main19000-B2B93i201801

1 parts on this diagram · 1 diagram in section
