Toyota PIXIS MEGA — METER

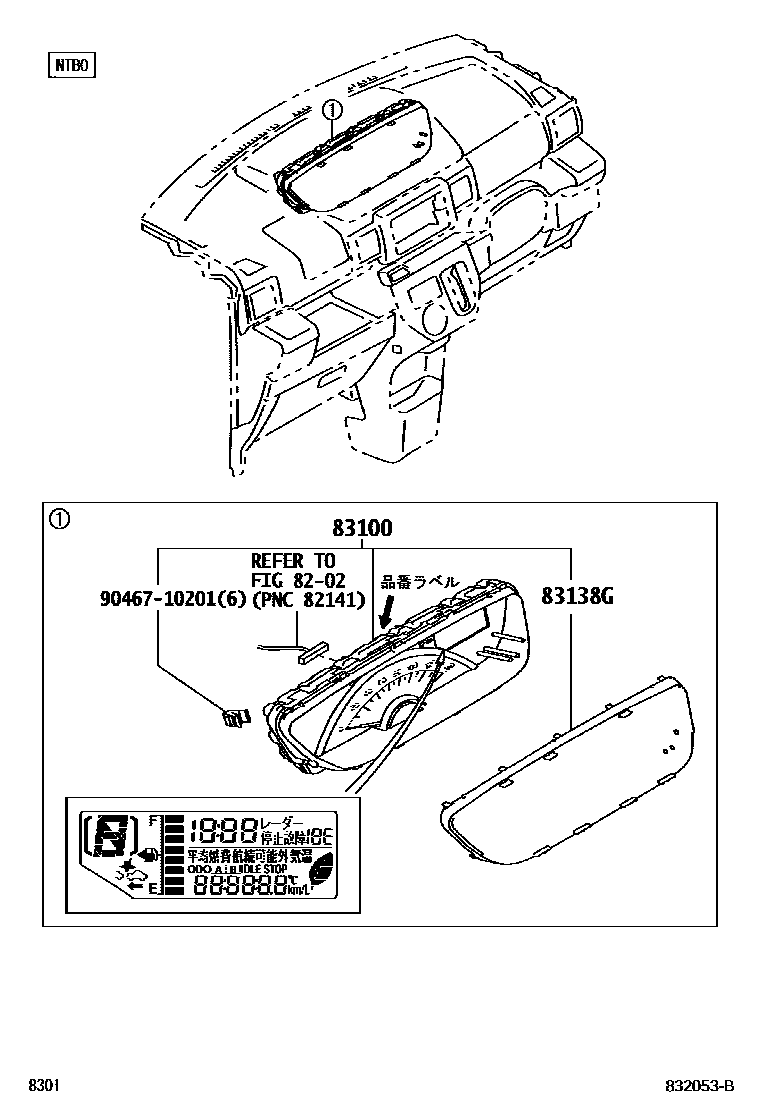

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

83100METER ASSY, COMBINATION

main83800-BA780i201605-201801

main83800-BAB20i201801-202105

main83800-BAB21i202105

main83800-BA440supersedes 83800-BA580i201507-201605

main83800-BA450supersedes 83800-BA590i201507-201605

main83800-BA460supersedes 83800-BA600i201507-201605

main83800-BA800supersedes 83800-BA790i201605-201801

main83800-BAB40supersedes 83800-BAB30i201801-202105

main83800-BAB41supersedes 83800-BAB31i202105

83138GGLASS, COMBINATION METER

main83852-B2110i201605-202105

main83852-B2190i201605-202105

9046710201

main90467-10201

4 parts on this diagram · 2 diagrams in section

METER for Toyota PIXIS MEGA

This section contains 4 genuine Toyota parts for the METER system of the Toyota PIXIS MEGA. Key components include: WIRING & CLAMP, METER ASSY, COMBINATION, GLASS, COMBINATION METER.
