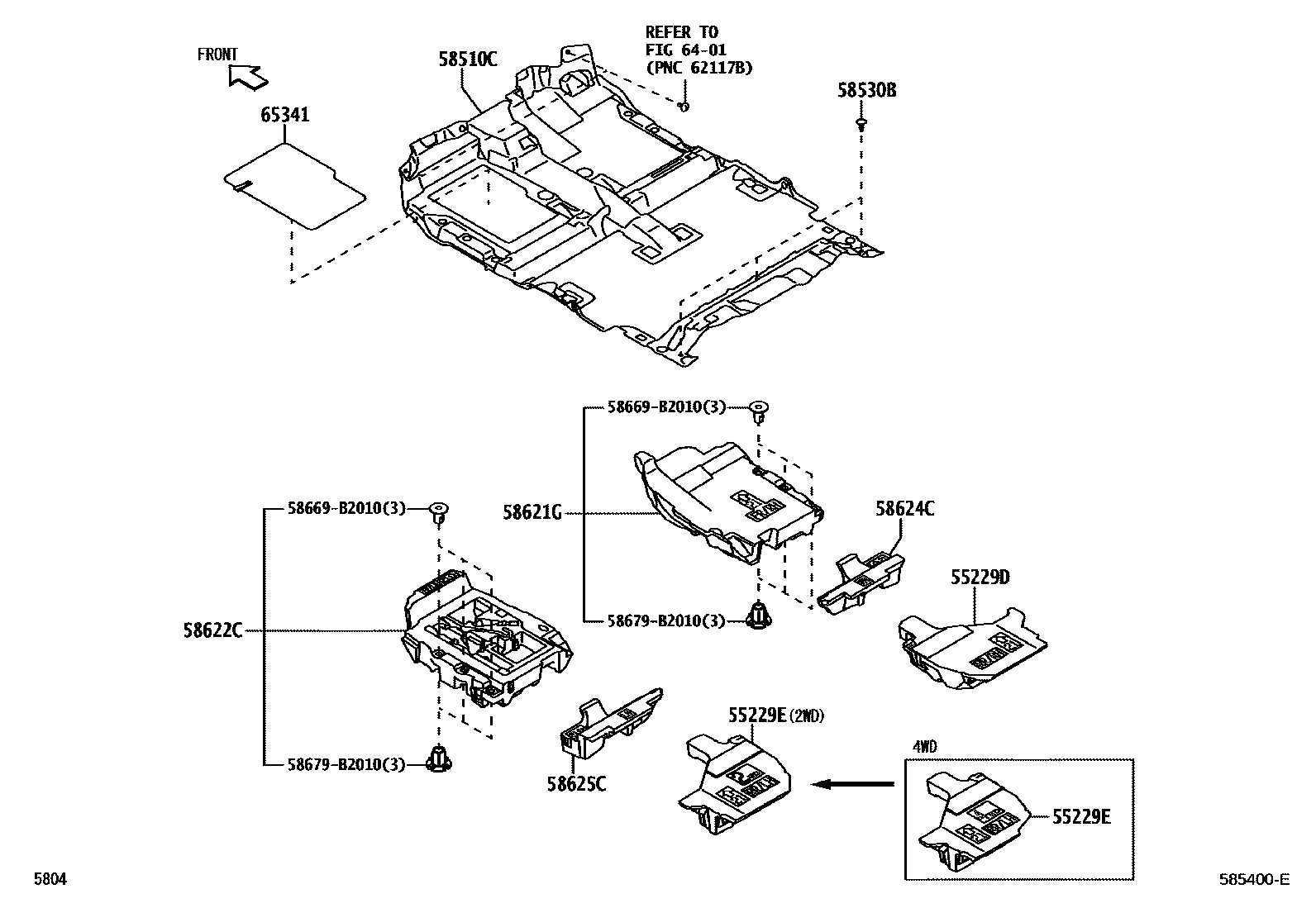

Toyota PIXIS MEGA — MAT & CARPET

55229DPLATE, REAR FLOOR SILENCER PAD, RH

main58676-B2270i201507-201605

55229EPLATE, REAR FLOOR SILENCER PAD, LH

main58677-B2260i201605

main58677-B2270i201605

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-B2U50-B1i201507-201605

DK.GRAY,TRIM1#

main58510-B2U40-B1supersedes 58510-B2U30-B1i201605

main58510-B2W70-B1supersedes 58510-B2U30-B1i201605

main58510-B2W80-B1supersedes 58510-B2U30-B1i201605

main58510-B2W90-B1supersedes 58510-B2U50-B1i201605

58530BCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-B2×3i201605-201610

DK.GRAY,TRIM1#

main90044-68046-C2×3i201611

BLACK,TRIM1#

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-B2100i201605

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-B2060i201507-201605

main58622-B2100i201605

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-B2050i201605

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-B2050i201605

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

65341BOARD, FLOOR, NO.1

main58404-B2030-B1i201507-201605

DK.GRAY,TRIM1#

main58404-B2040-B1i201605

58669B2010

main58669-B2010

58679B2010SILENCER, HEADER PANEL

main58679-B2010

12 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota PIXIS MEGA

This section contains 12 genuine Toyota parts for the MAT & CARPET system of the Toyota PIXIS MEGA. Key components include: PLATE, REAR FLOOR SILENCER PAD, RH, PLATE, REAR FLOOR SILENCER PAD, LH, CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), PAD, FRONT FLOOR SILENCER, RH.
