Toyota PIXIS MEGA — HORN

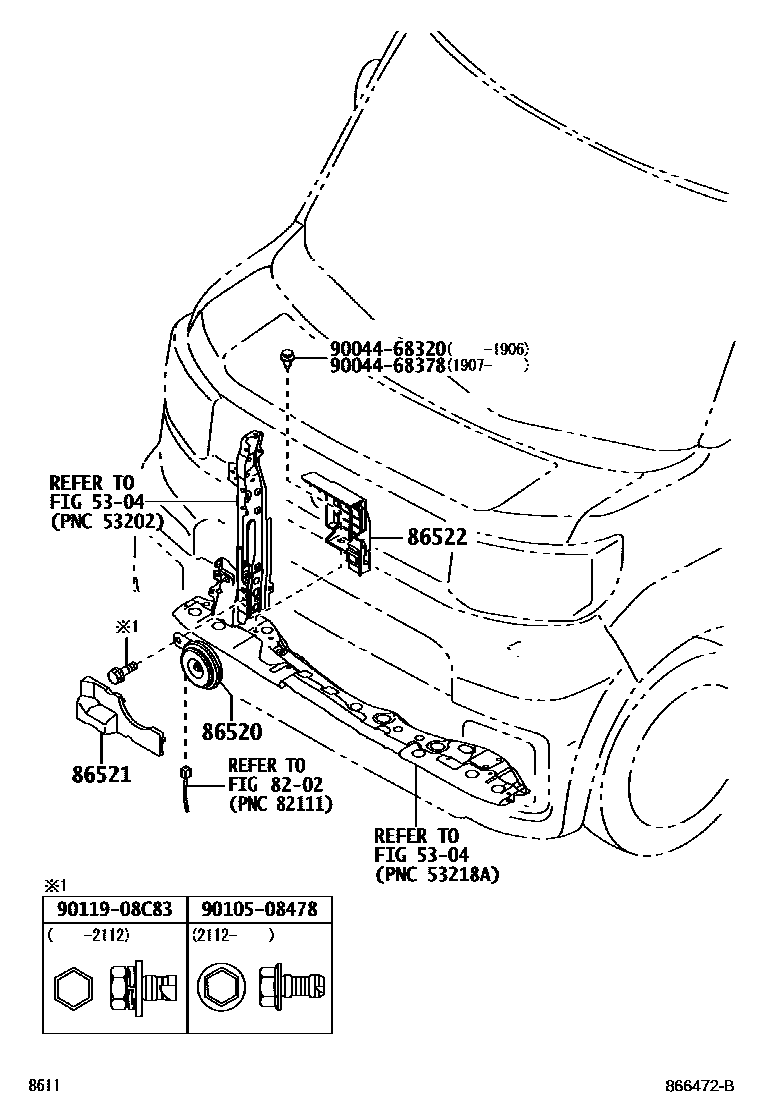

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

8202WIRING & CLAMP

→ Go to FIG 82-02

86520HORN ASSY, LOW PITCHED

main86520-B2040i201605

main86520-B5010i201605

86521COVER, LOW PITCHED HORN

main86522-B2070i201605-201608

main86522-B2160i201608

86522PROTECTOR, HORN

main86522-B2060i201507-201605

9004468320

main90044-68320

9004468378

main90044-68378

9010508478

main90105-08478

9011908C83

main90119-08C83

9 parts on this diagram · 1 diagram in section

HORN for Toyota PIXIS MEGA

This section contains 9 genuine Toyota parts for the HORN system of the Toyota PIXIS MEGA. Key components include: FRONT FENDER APRON & DASH PANEL, WIRING & CLAMP, HORN ASSY, LOW PITCHED, COVER, LOW PITCHED HORN, PROTECTOR, HORN.
