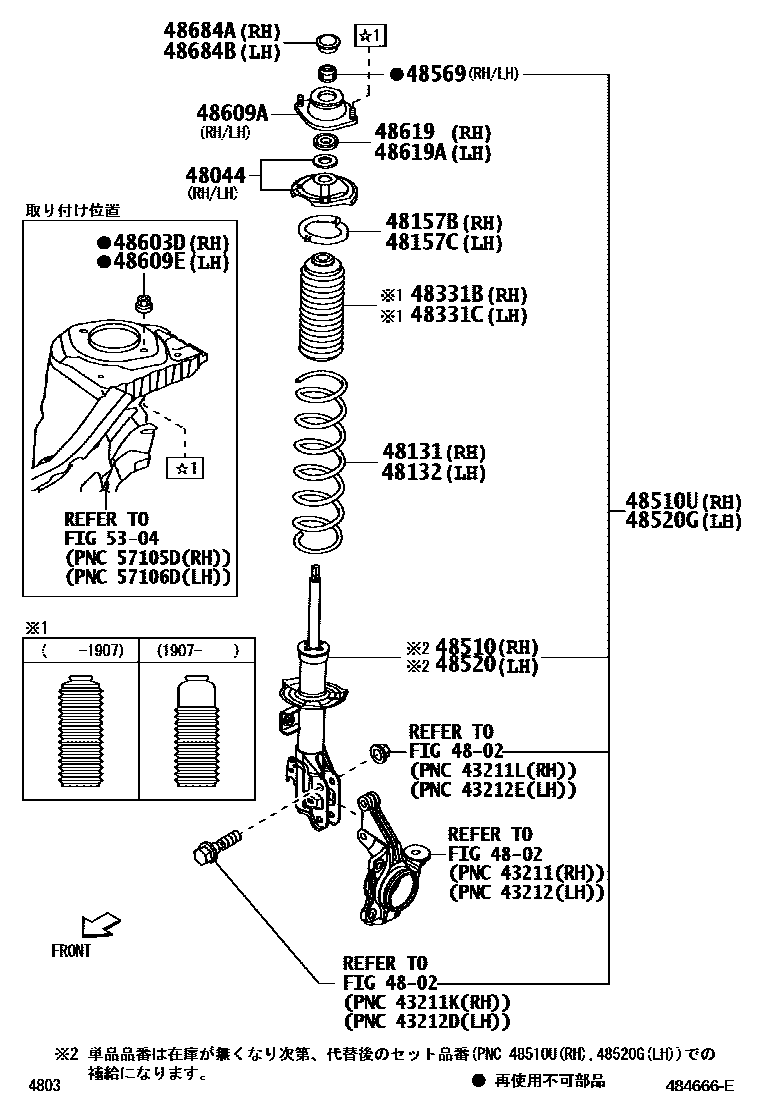

Toyota PIXIS MEGA — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48569NUT, SHOCK ABSORBER PISTON
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
5304FRONT FENDER APRON & DASH PANEL
21 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota PIXIS MEGA
This section contains 29 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota PIXIS MEGA. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SEAT SUB-ASSY, FRONT SPRING, NO.1, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH.
