Toyota PIXIS MEGA — FRONT FENDER APRON & DASH PANEL

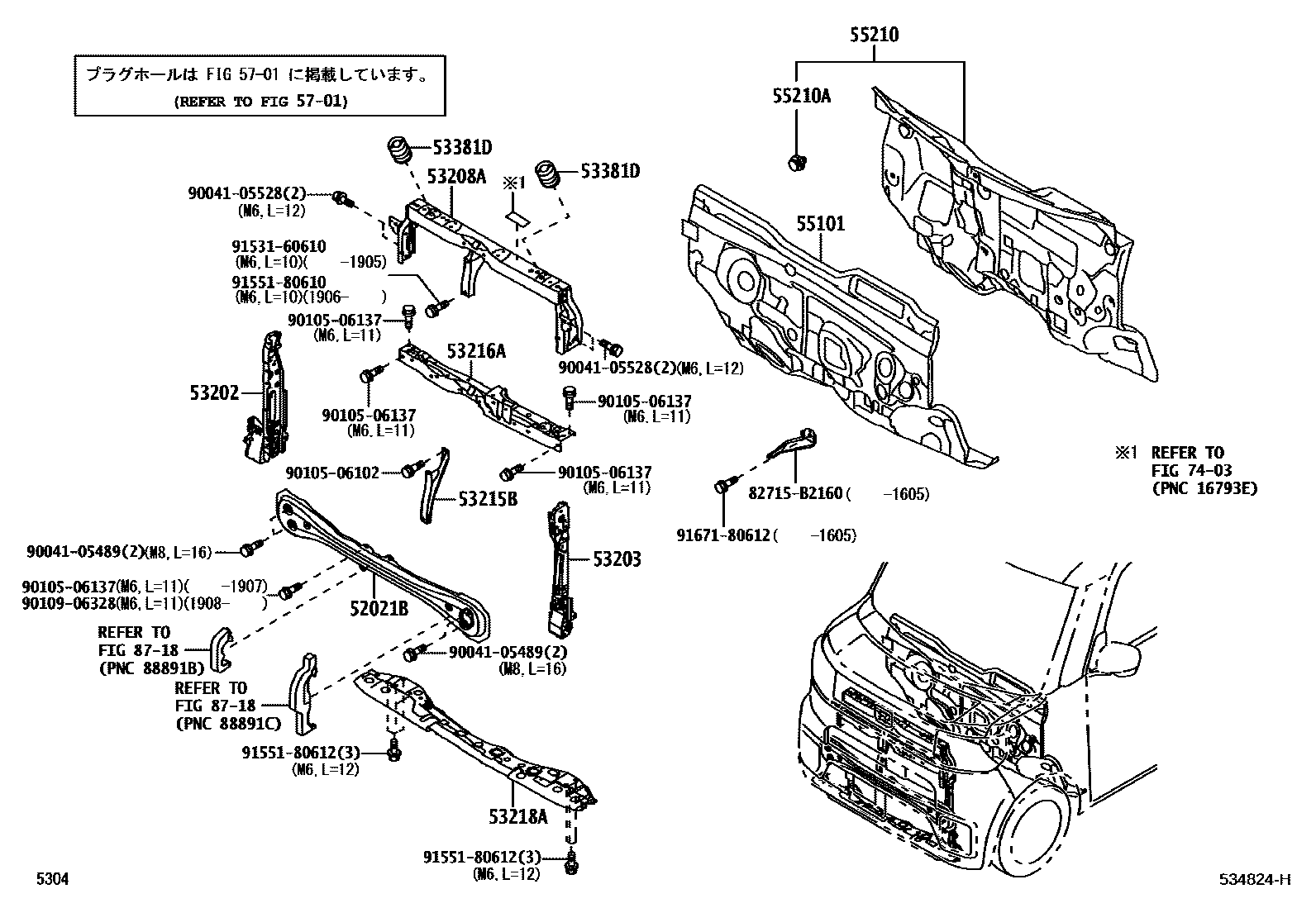

Parts diagram

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52131-B2060i201507-201605

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B2221i201605

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B2191i201605

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-B2040i201605

53215BSUPPORT, HOOD LOCK

main53215-B2160i201605

53216ASUPPORT, RADIATOR, UPPER

main53205-B2240i201507-201605

53218ASUPPORT, RADIATOR, LOWER

main53028-B2300supersedes 53028-B2290i201605

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-B2150×2i201605

55101PANEL SUB-ASSY, DASH

main55101-B2510i201507-201605

main55101-B2560i201605

55210INSULATOR ASSY, DASH PANEL

main55210-B2370i201507-201508

main55210-B2371i201509-201605

main55210-B2400i201605-201810

main55210-B2401i201811

55210ACLIP

main90467-11122×6i201605

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

82715B2160BRACKET,WIRING HARNESS CLAMP

main82715-B2160

9004105489

main90041-05489

9004105528

main90041-05528

9010506102

main90105-06102

9010506137

main90105-06137

9010906328

main90109-06328

9153160610

main91531-60610

9155180610

main91551-80610

9155180612

main91551-80612

9167180612

main91671-80612

24 parts on this diagram · 3 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota PIXIS MEGA

This section contains 44 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota PIXIS MEGA. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, HOOD LOCK & HINGE, FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH.
