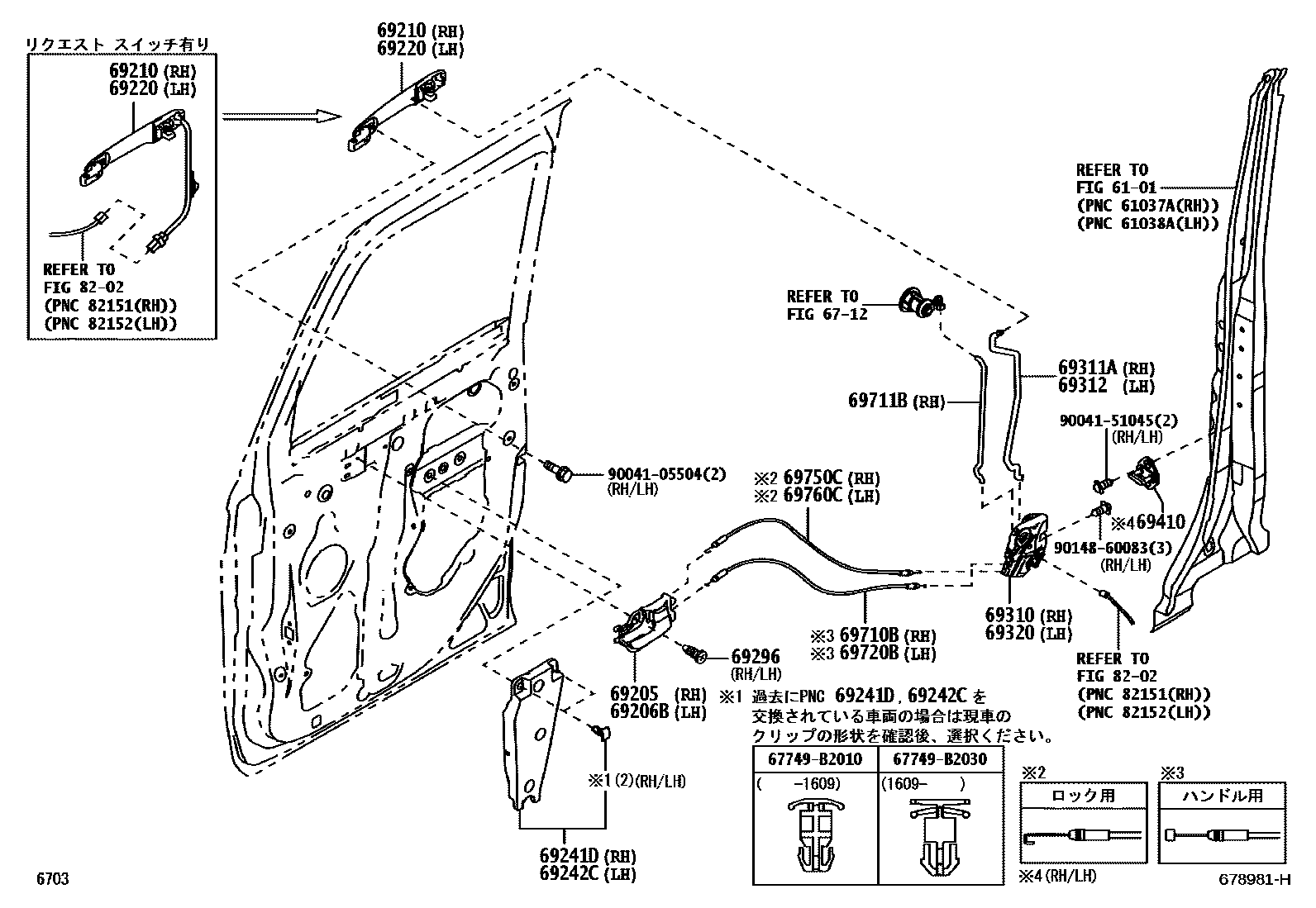

Toyota PIXIS MEGA — FRONT DOOR LOCK & HANDLE
6101SIDE MEMBER
6712LOCK CYLINDER SET
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
BLACK,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SILVER ME.,B58 ,B69 ,B82 ,B87 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,W25 ,X07 ,X81 ,X85 ,X87 ,XA3 ,XE1 ,XJ0 ,XK6 ,XK7; SILVER ME.,XK8 ,XK9
SILVER ME.,B58 ,B69 ,B82 ,B87 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,W25 ,X07 ,X81 ,X85 ,X87 ,XA3 ,XE1 ,XJ0 ,XK6 ,XK7; SILVER ME.,XK8 ,XK9
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SILVER ME.,B58 ,B69 ,B82 ,B87 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,W25 ,X07 ,X81 ,X85 ,X87 ,XA3 ,XE1 ,XJ0 ,XK6 ,XK7; SILVER ME.,XK8 ,XK9
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8202WIRING & CLAMP
67749B2010CLIP, DOOR TRIM MOULDING
main67749-B2010
67749B2030CLIP, DOOR TRIM MOULDING
main67749-B2030
9004105504
main90041-05504
9004151045
main90041-51045
9014860083
main90148-60083
25 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PIXIS MEGA
This section contains 25 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PIXIS MEGA. Key components include: SIDE MEMBER, LOCK CYLINDER SET, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
