Toyota PIXIS MEGA — FRONT AXLE HUB

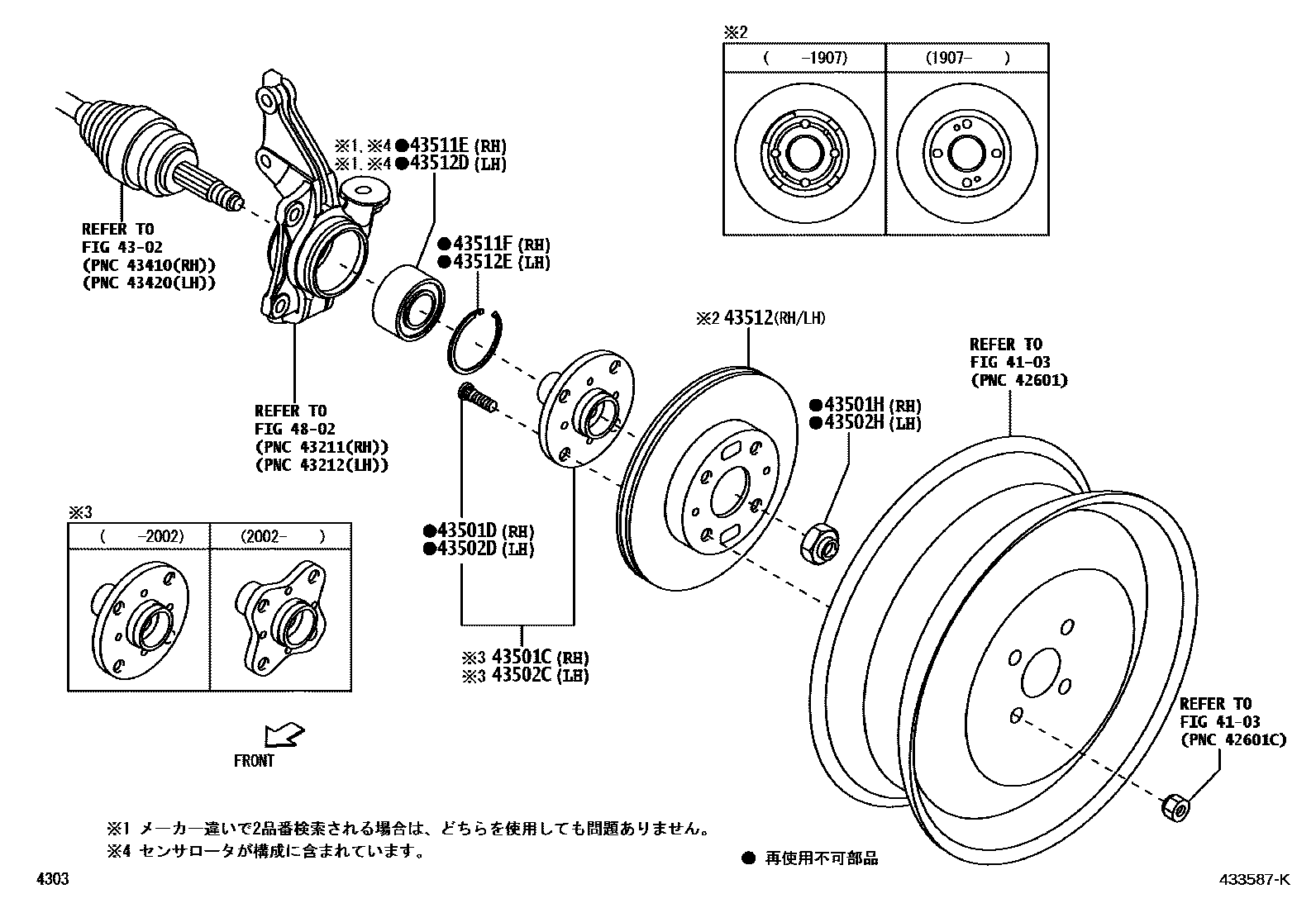

Parts diagram

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B2030i202002-202208

main43502-B5020i201605-202002

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4i201605

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274i201605

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B2030i202002

main43502-B5020i201605-202002

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4i201605

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274i201605

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B2021i201605-201904

main43560-B2022i201905

main43560-B2030i201605-201904

main43560-B2031i201905

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163i201507-201605

43512DISC, FRONT

main43512-B2112×2i201605-201907

main43512-B2150×2i201907

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B2021i201605-201904

main43560-B2022i201905

main43560-B2030i201507-201605

main43560-B2031i201905

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163i201507-201605

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota PIXIS MEGA

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PIXIS MEGA. Key components include: DISC WHEEL & WHEEL CAP, FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH).
