Toyota PIXIS MEGA — ENGINE OVERHAUL GASKET KIT

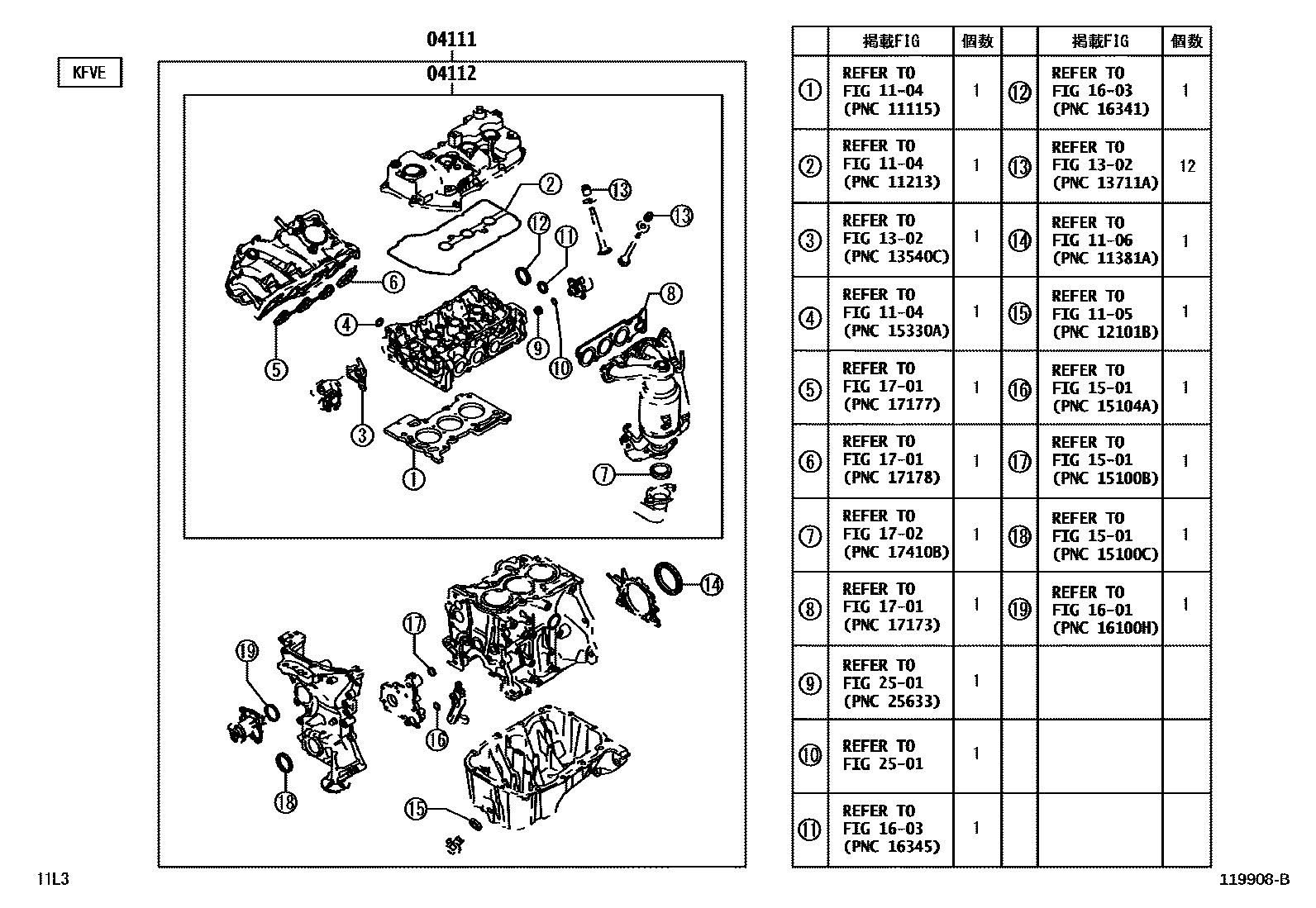

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-B2041i201507-201603
main04111-B2042i201603-201605
main04111-B2052i201507-201603
main04111-B2054i201605-202010
main04111-B2057i202010
main04111-B2A01i201605-201711
main04111-B2A02i201711-202010
main04111-B2A03i202010
04112GASKET KIT, ENGINE VALVE GRIND
main04112-B2041i201507-201603
main04112-B2052i201603-201605
main04112-B2053i202010
main04112-B2A00i201605-201711
main04112-B2A01i201711-202010
main04112-B2A02i202010
1104CYLINDER HEAD
→ Go to FIG 11-04
1105CYLINDER BLOCK
→ Go to FIG 11-05
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
1501ENGINE OIL PUMP
→ Go to FIG 15-01
1601WATER PUMP
→ Go to FIG 16-01
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
1702EXHAUST PIPE
→ Go to FIG 17-02
2501EXHAUST GAS RECIRCULATION SYSTEM
→ Go to FIG 25-01

12 parts on this diagram · 2 diagrams in section

ENGINE OVERHAUL GASKET KIT for Toyota PIXIS MEGA

This section contains 13 genuine Toyota parts for the ENGINE OVERHAUL GASKET KIT system of the Toyota PIXIS MEGA. Key components include: GASKET KIT, ENGINE OVERHAUL, GASKET KIT, ENGINE VALVE GRIND, CYLINDER HEAD, CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE.
