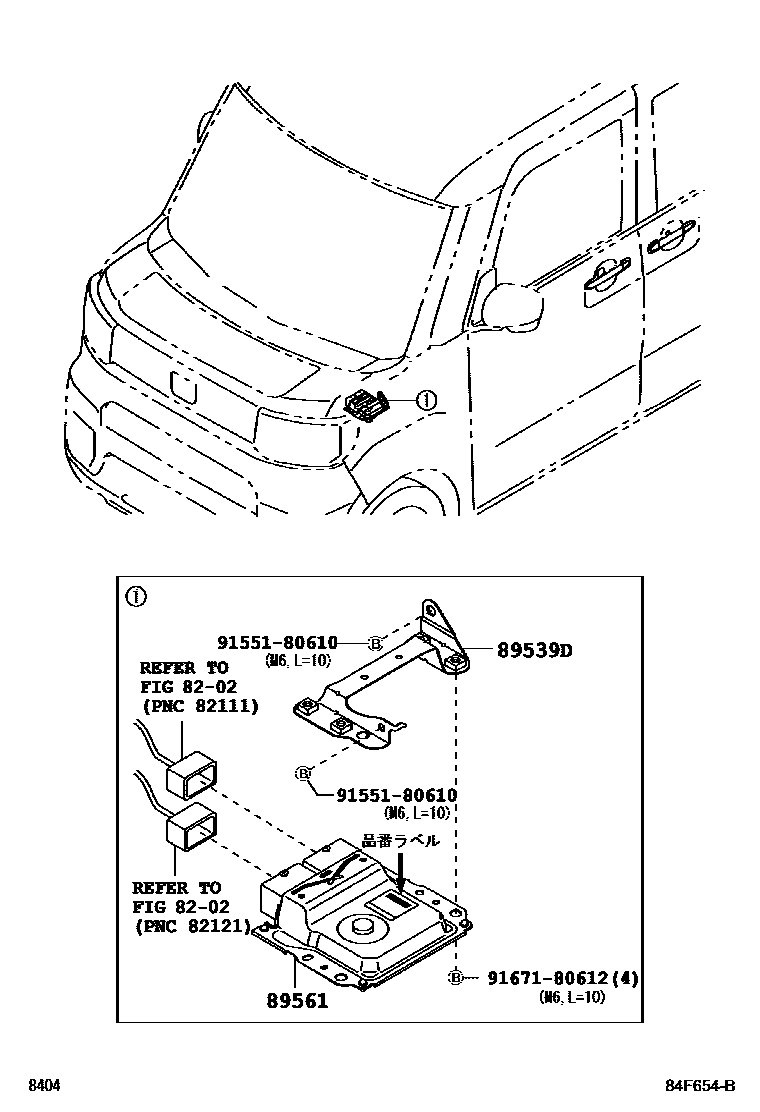

Toyota PIXIS MEGA — ELECTRONIC FUEL INJECTION SYSTEM

8202WIRING & CLAMP

→ Go to FIG 82-02

89539DBRACKET, COMPUTER

main89539-B2730i201507-201605

main89539-B2770i201605

89561COMPUTER, FUEL INJECTION

main89560-BAG81supersedes 89560-BAJ51i201507-201511

main89560-BAG82supersedes 89560-BAJ52i201512-201605

main89560-BAG91supersedes 89560-BAJ61i201507-201511

main89560-BAG92supersedes 89560-BAJ62i201512-201605

main89560-BAJ41supersedes 89560-BAJ71i201507-201511

main89560-BAJ42supersedes 89560-BAJ72i201512-201605

main89560-BAS80supersedes 89560-BAS70i201605-201701

main89560-BAS81supersedes 89560-BAS71i201702-201801

main89560-BAU00supersedes 89560-BAT00i201605-201701

main89560-BAU01supersedes 89560-BAT01i201702-201801

main89560-BAU20supersedes 89560-BAT20i201605-201701

main89560-BAU21supersedes 89560-BAT21i201702-201801

main89560-BAU40supersedes 89560-BAT40i201605-201701

main89560-BAU41supersedes 89560-BAT41i201702-201801

main89560-BAU60supersedes 89560-BAT60i201605-201701

main89560-BAU61supersedes 89560-BAT61i201702-201801

main89560-BB260supersedes 89560-BB250i201801-202005

main89560-BB261supersedes 89560-BB251i202006

main89560-BB310supersedes 89560-BB270i201801-202005

main89560-BB311supersedes 89560-BB271i202006

main89560-BB320supersedes 89560-BB280i201801-202005

main89560-BB321supersedes 89560-BB281i202006

main89560-BB330supersedes 89560-BB290i201801-202005

main89560-BB331supersedes 89560-BB291i202006

main89560-BB340supersedes 89560-BB300i201801-202005

main89560-BB341supersedes 89560-BB301i202006

9155180610

main91551-80610

9167180612

main91671-80612

5 parts on this diagram · 2 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota PIXIS MEGA

This section contains 7 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota PIXIS MEGA. Key components include: WIRING & CLAMP, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION.
