Toyota PIXIS MEGA — ECO-RUN SYSTEM

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

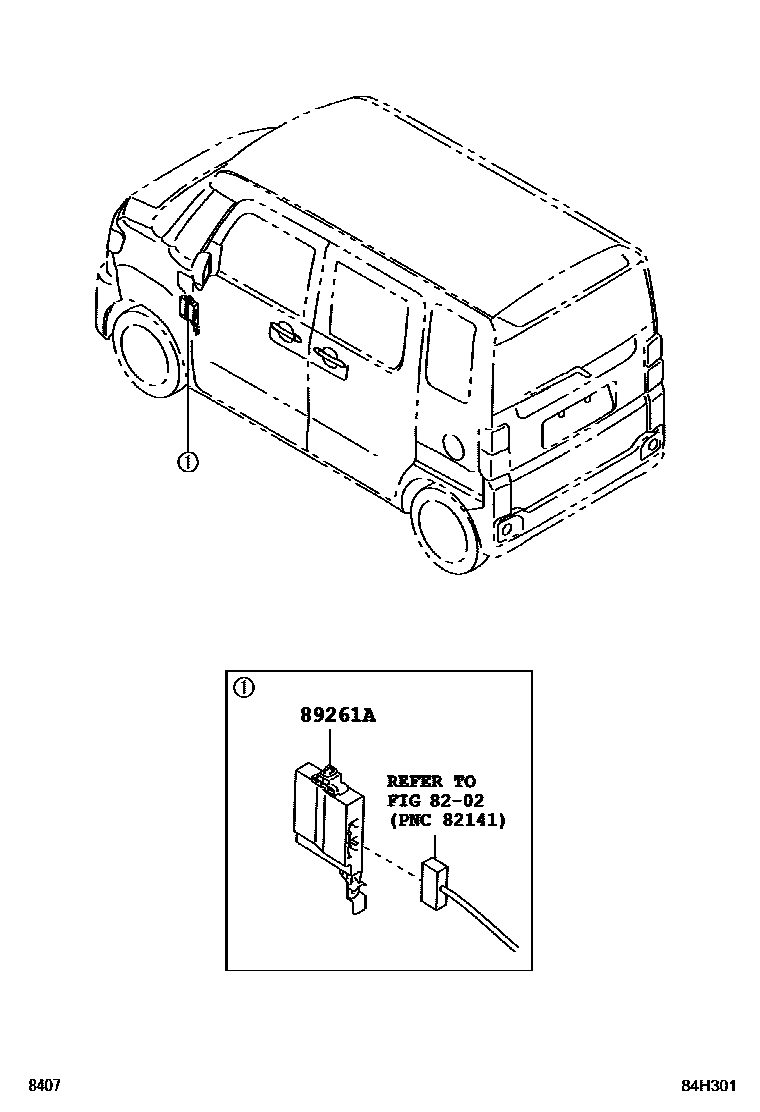

89261ACOMPUTER, ENGINE STOP AND START

main89261-B2160i201605-201801

main89261-B2170i201605-201801

main89261-B2290i201801

main89261-B2300i201801

2 parts on this diagram · 1 diagram in section
