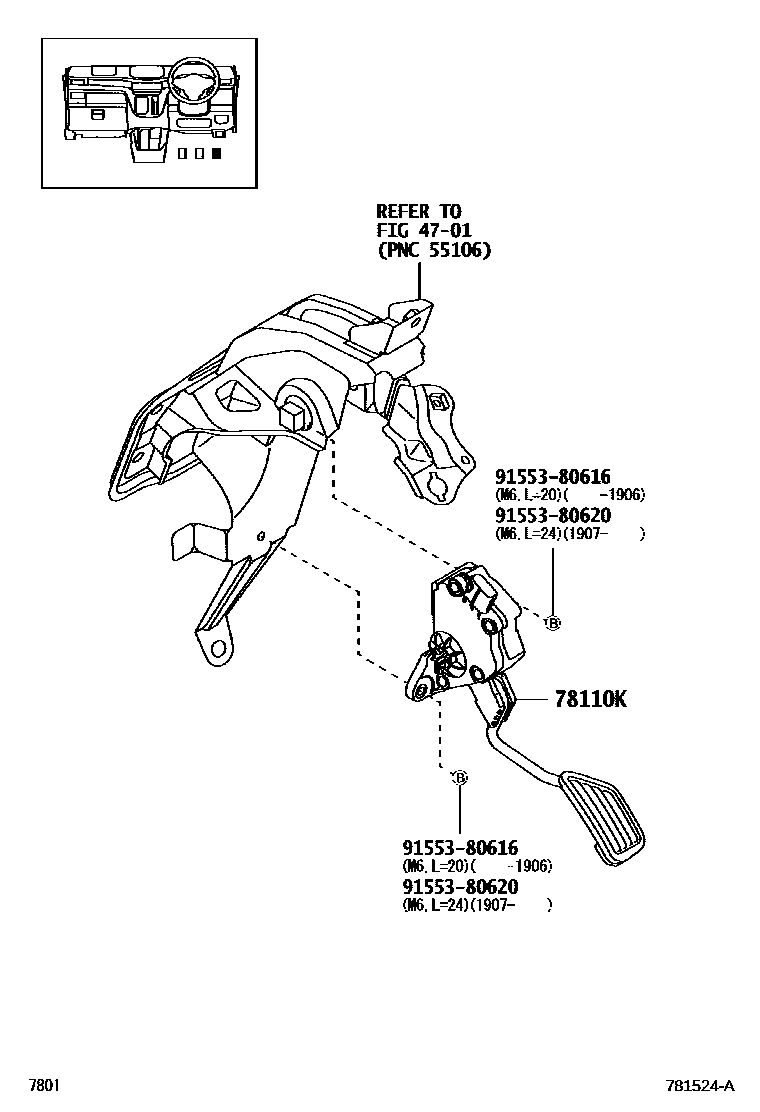

Toyota PIXIS MEGA — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-B2061i201605

9155380616

main91553-80616

9155380620

main91553-80620

4 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota PIXIS MEGA

This section contains 4 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PIXIS MEGA. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
