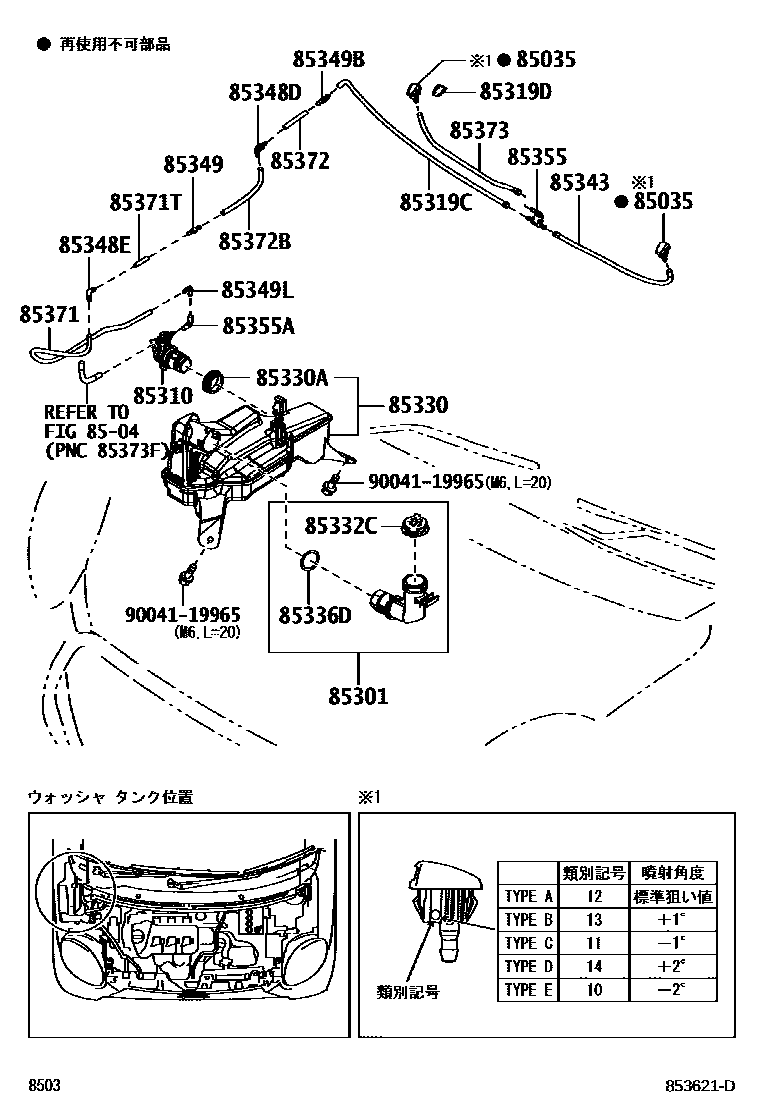

Toyota PIXIS JOY — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CCAP, FRONT WASHER TANK
85336DPACKING, WINDSHIELD WASHER JAR
85343HOSE, WINDSHIELD WASHER SUCTION
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349BJOINT, WINDSHIELD WASHER HOSE, NO.3
85349LJOINT, WINDSHIELD WASHER ELBOW, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85355AJOINT, WINDSHIELD WASHER ELBOW
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
9004119965
main90041-19965
24 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota PIXIS JOY
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PIXIS JOY. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER.
