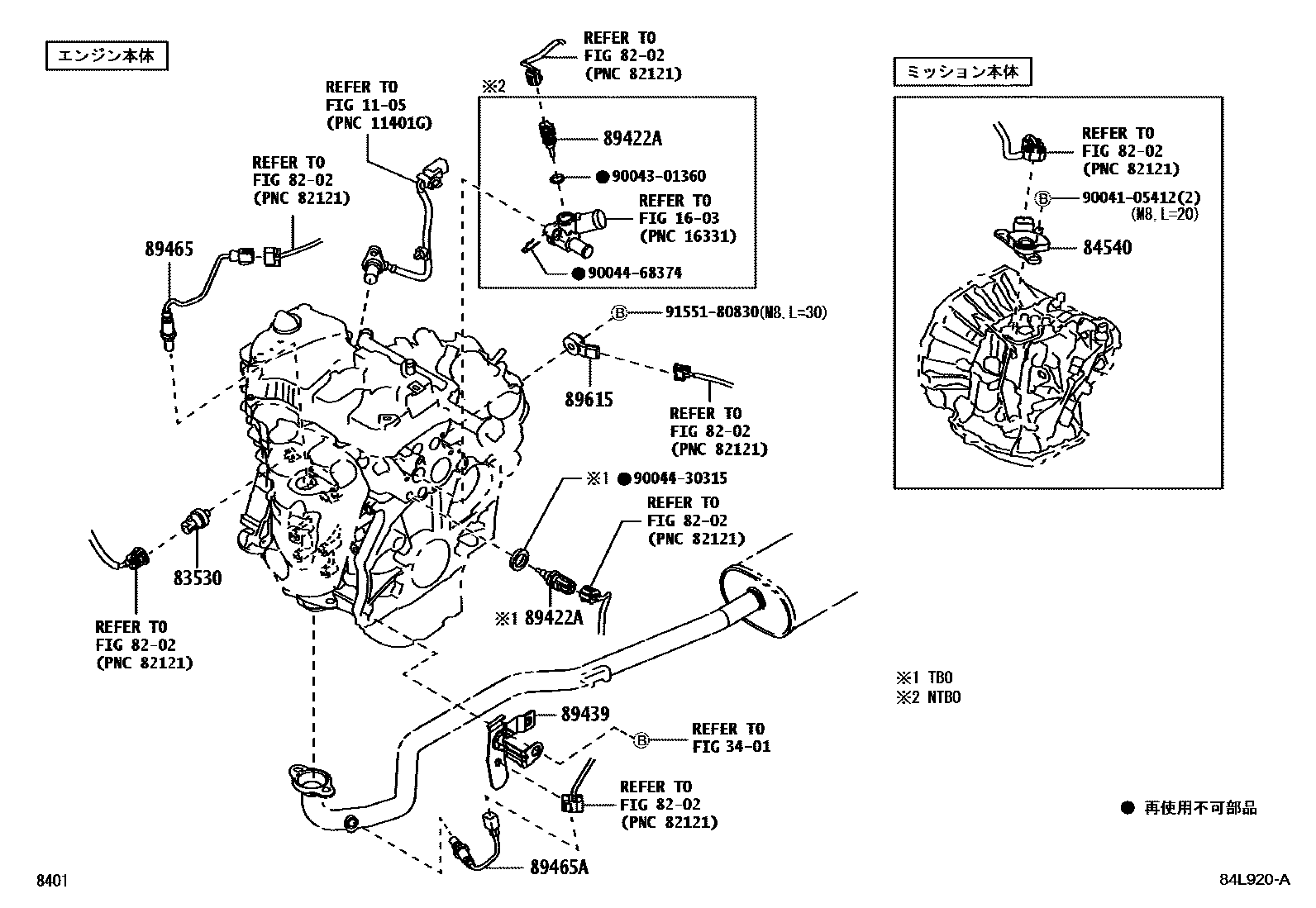

Toyota PIXIS JOY — SWITCH & RELAY & COMPUTER

0001 1�������� & ����� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1��� 0006 1������������ 0007 1 0008 1��� & ��� 0009 1�������

1105

1603

3401

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-B2010iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

84540SWITCH ASSY, NEUTRAL START

main84540-B2050iLA250,260..FG,FGT,FX201609

89422ASENSOR, WATER TEMPERATURE

main89422-33030iLA250,260..FGT;LA250,260..(CGT,S)..PS1201609

main89422-B2010iLA250,260..FG,FX;LA250,260..(CG,CX)..PS1201609

89439BRACKET, SENSOR

main89439-B2170iLA250,260201609-201904

main89439-B2380iLA250,260..CG,CGT,CX,S201905-202001

89465SENSOR, OXYGEN

main89465-B2130iLA250,260201609-202306

89465ASENSOR, OXYGEN NO.2

main89465-B2140iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

89615SENSOR, KNOCK CONTROL

main89615-20090iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

9004105412

main90041-05412

9004301360

main90043-01360

9004430315

main90044-30315

9004468374

main90044-68374

9155180830

main91551-80830

16 parts on this diagram · 9 diagrams in section
