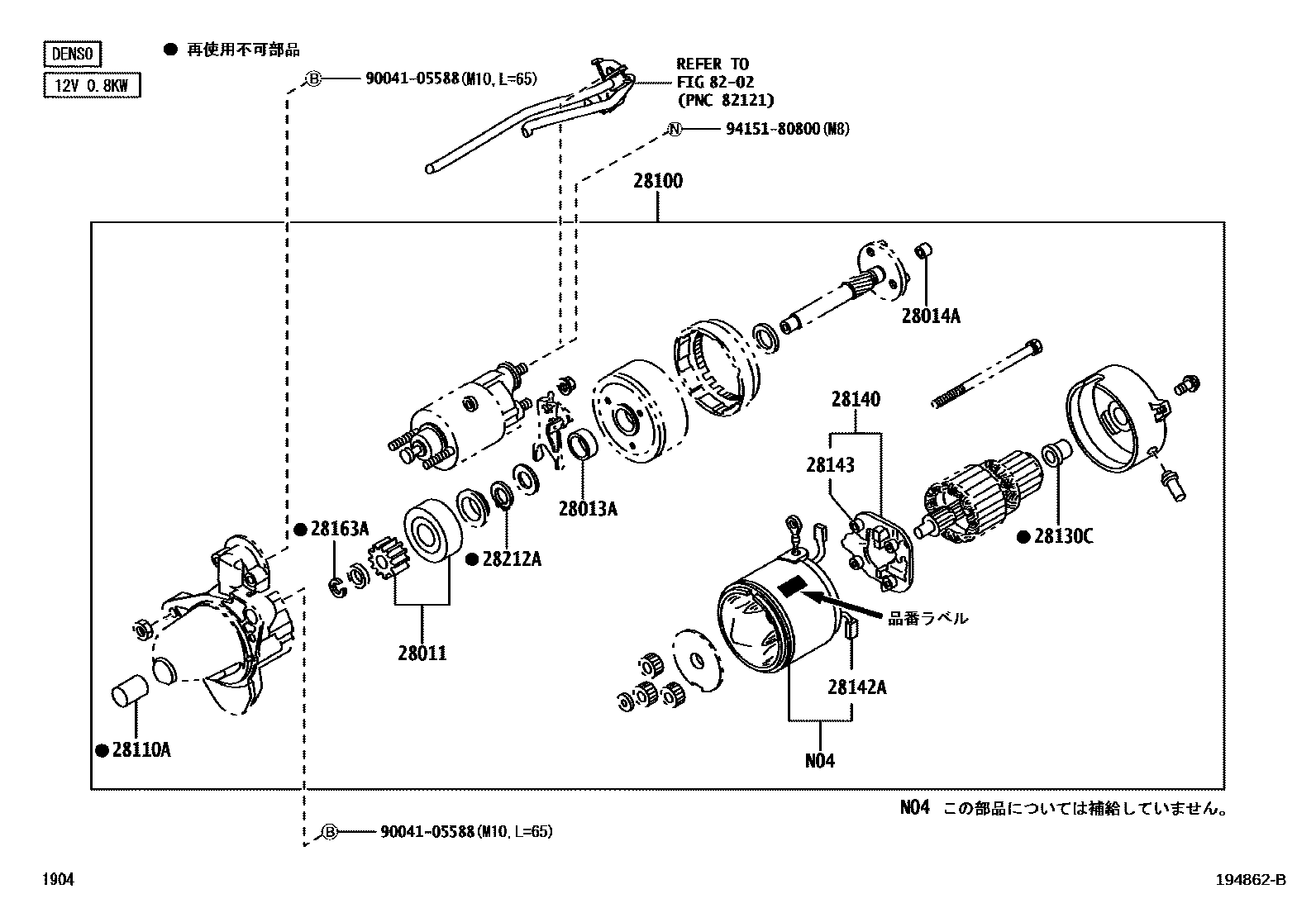

Toyota PIXIS JOY — STARTER
28011CLUTCH SUB-ASSY, STARTER
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
28110ABEARING(FOR STARTER HOUSING)
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
28212ARING, SNAP, STARTER CLUTCH HOUSING DISC
8202WIRING & CLAMP
9004105588
main90041-05588
9415180800
main94151-80800
14 parts on this diagram · 2 diagrams in section
STARTER for Toyota PIXIS JOY
This section contains 16 genuine Toyota parts for the STARTER system of the Toyota PIXIS JOY. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, BUSH OR BEARING, PLANET CARRIER SHAFT, STARTER ASSY, BEARING(FOR STARTER HOUSING).
