Toyota PIXIS JOY — PARTIAL ENGINE ASSEMBLY

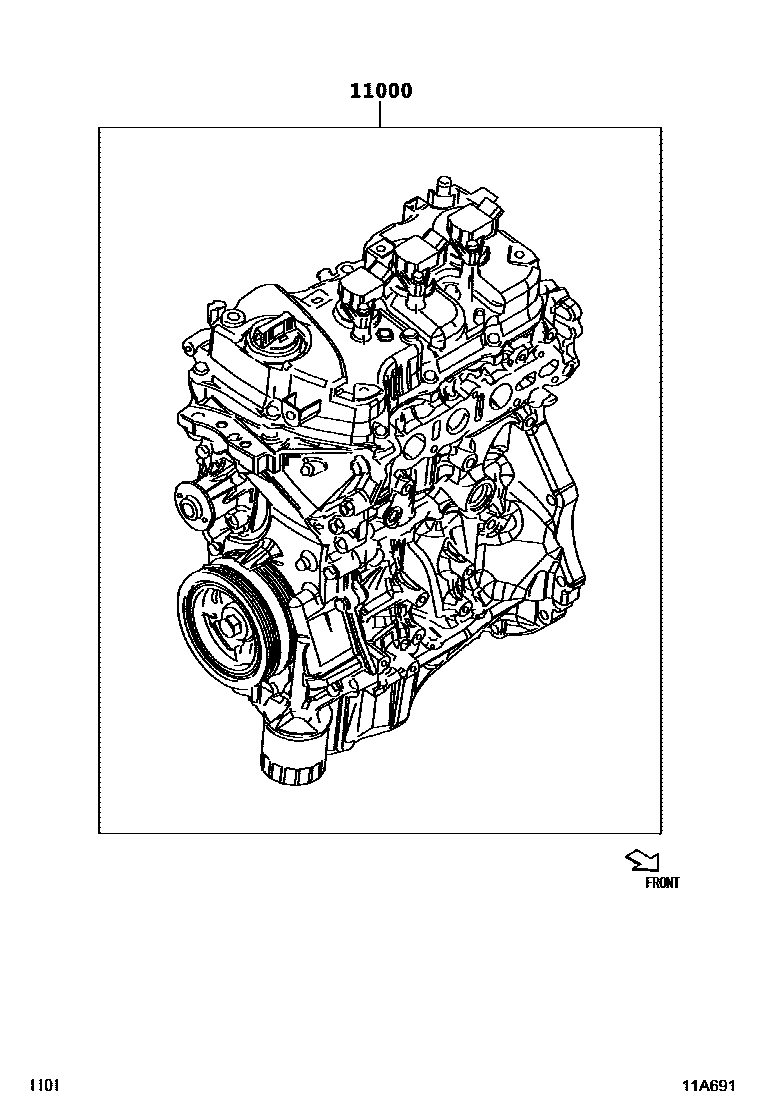

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-B2A22i201609-201710
sub19000-B2A23
sub17107-B2082
sub94188-00841
main19000-B2A32i201609-201710
main19000-B2A93i201710-201910
sub17107-B2082
sub94188-00841
main19000-B2A94i201910-202306
main19000-B2B93i201710-202306

1 parts on this diagram · 1 diagram in section
