Toyota PIXIS JOY — METER

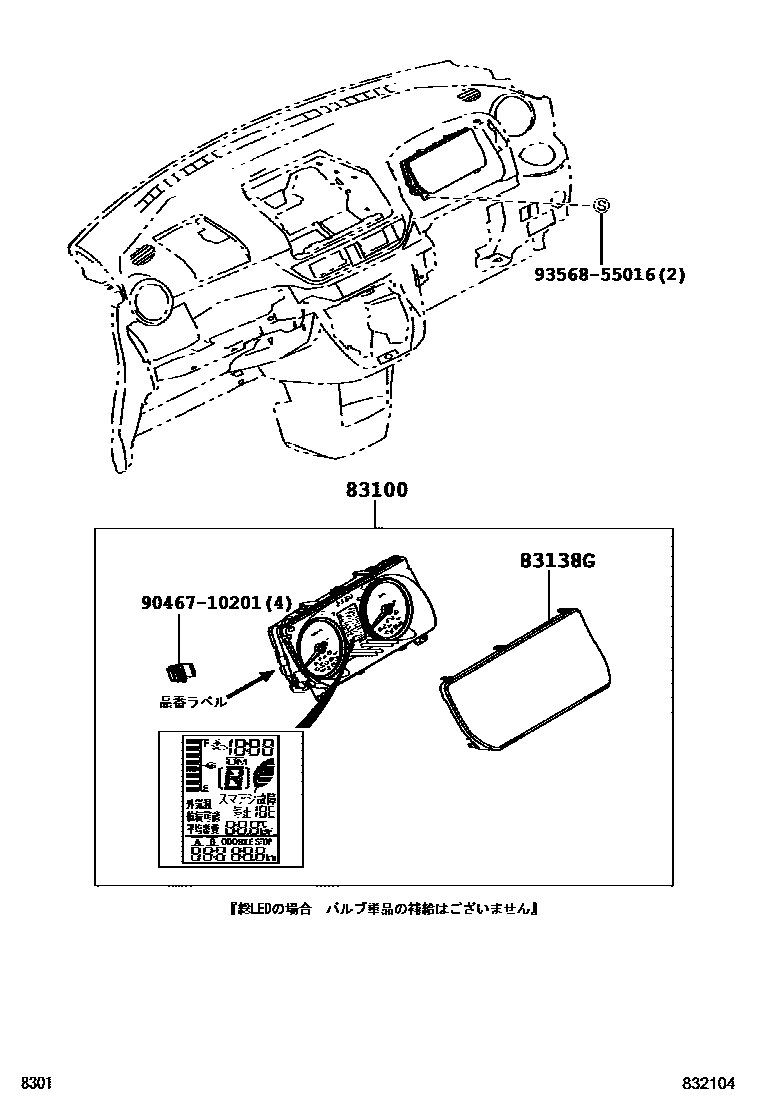

Parts diagram

83100METER ASSY, COMBINATION

main83800-BAA00i201609-201710

main83800-BAA10i201609-201710

main83800-BAA20i201609-201710

main83800-BAA61i201710-202001

main83800-BAA71i201710-202105

main83800-BAA72i202105

main83800-BAA81i201710-202001

83138GGLASS, COMBINATION METER

main83852-B2230i201609

9046710201

main90467-10201

9356855016

main93568-55016

4 parts on this diagram · 1 diagram in section

METER for Toyota PIXIS JOY

This section contains 4 genuine Toyota parts for the METER system of the Toyota PIXIS JOY. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
