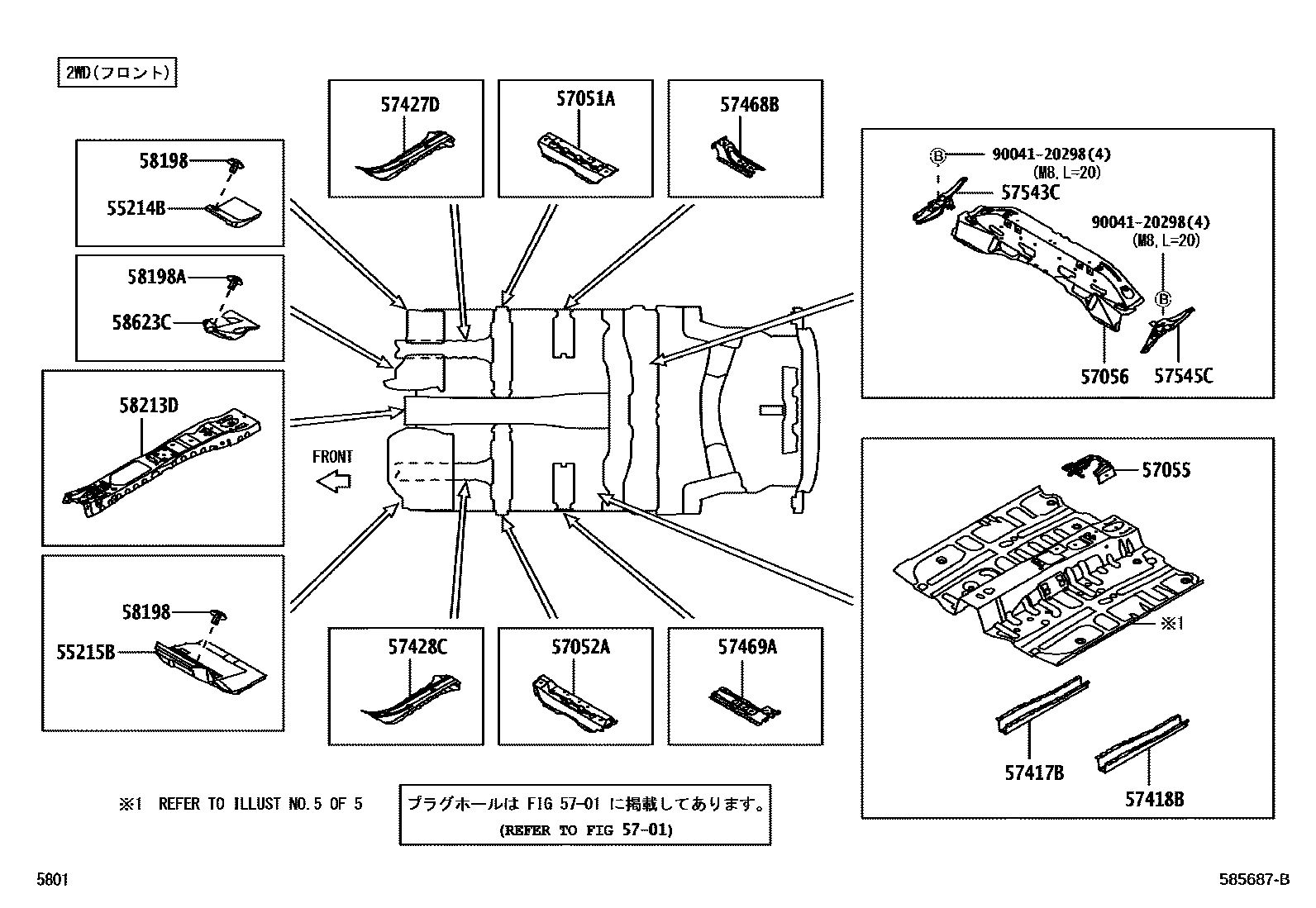

Toyota PIXIS JOY — FLOOR PAN & LOWER BACK PANEL

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-B2080i201609-202001

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-B2080i201609-202001

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-B2110i201609

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-B2200i201609-202001

57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5

main57055-B2150i201609-202001

57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6

main57053-B2320i201609-202306

main57053-B2330i201609-202306

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-B2080i201609-202001

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-B2080i201609

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-B2060i201609-202001

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-B2060i201609-202001

57468BBRACKET, FRONT SEAT, REAR

main57468-B2020i201609-202001

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-B2050i201609-202001

57543CBRACE, CENTER FLOOR, NO.1

main57671-B2050i201609-202001

57545CBRACE, CENTER FLOOR, NO.2

main57672-B2020i201609-202001

58198CLIP, FOOTREST

main58199-B2010-C0×2i201609-201812

BLACK

main90044-67397×2i201901

58198ACLIP, FOOTREST, NO.1

main58199-B2010-C0i201609-201812

BLACK

main90044-67397i201901-202001

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-B2180i201609

main58213-B2230i201609-202001

58623CPAD, FRONT FLOOR SILENCER, CENTER

main55221-B2010i201609-202001

9004120298

main90041-20298

20 parts on this diagram · 5 diagrams in section

FLOOR PAN & LOWER BACK PANEL for Toyota PIXIS JOY

This section contains 47 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota PIXIS JOY. Key components include: HOOK, TRANSPORT, REAR, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, HOLE PLUG, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH.
