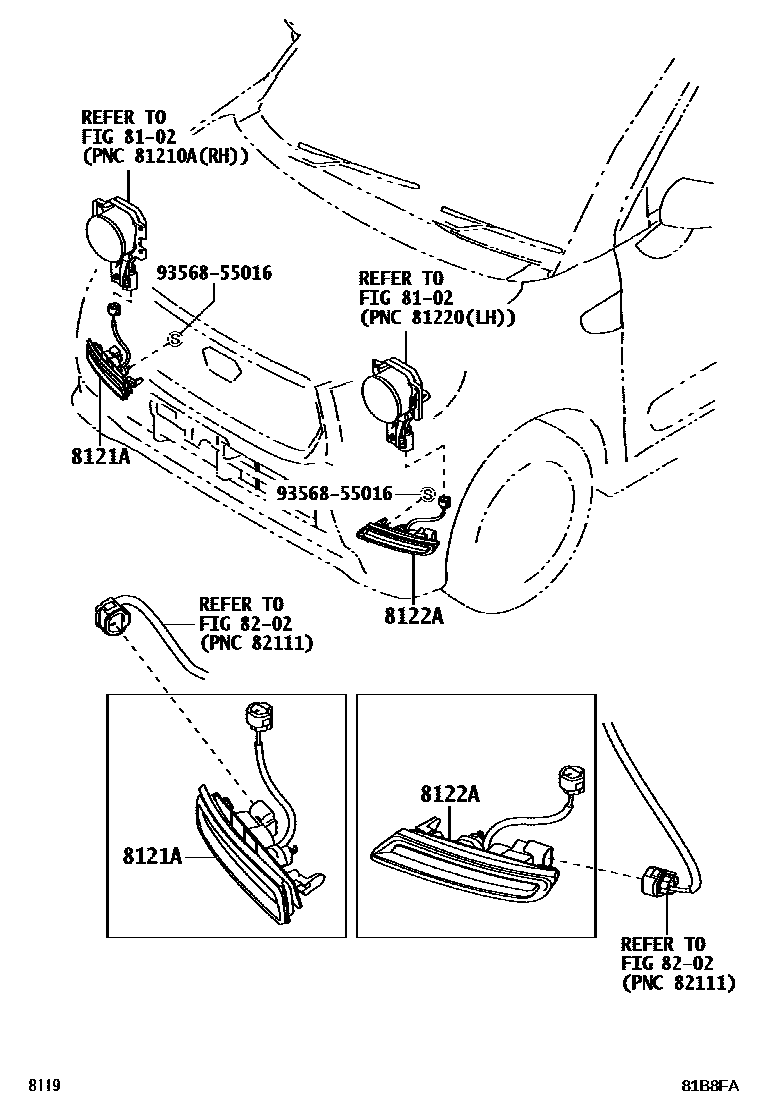

Toyota PIXIS JOY — DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

8102FOG LAMP

→ Go to FIG 81-02

8121ALAMP, LED ILLUMINATION, RH

main812A0-B2050i201609-202001

8122ALAMP, LED ILLUMINATION, LH

main812B0-B2050i201609-202001

8202WIRING & CLAMP

→ Go to FIG 82-02

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section

DAYTIME RUNNING LAMP OR ILLUMINATION LAMP for Toyota PIXIS JOY

This section contains 5 genuine Toyota parts for the DAYTIME RUNNING LAMP OR ILLUMINATION LAMP system of the Toyota PIXIS JOY. Key components include: FOG LAMP, LAMP, LED ILLUMINATION, RH, LAMP, LED ILLUMINATION, LH, WIRING & CLAMP.
