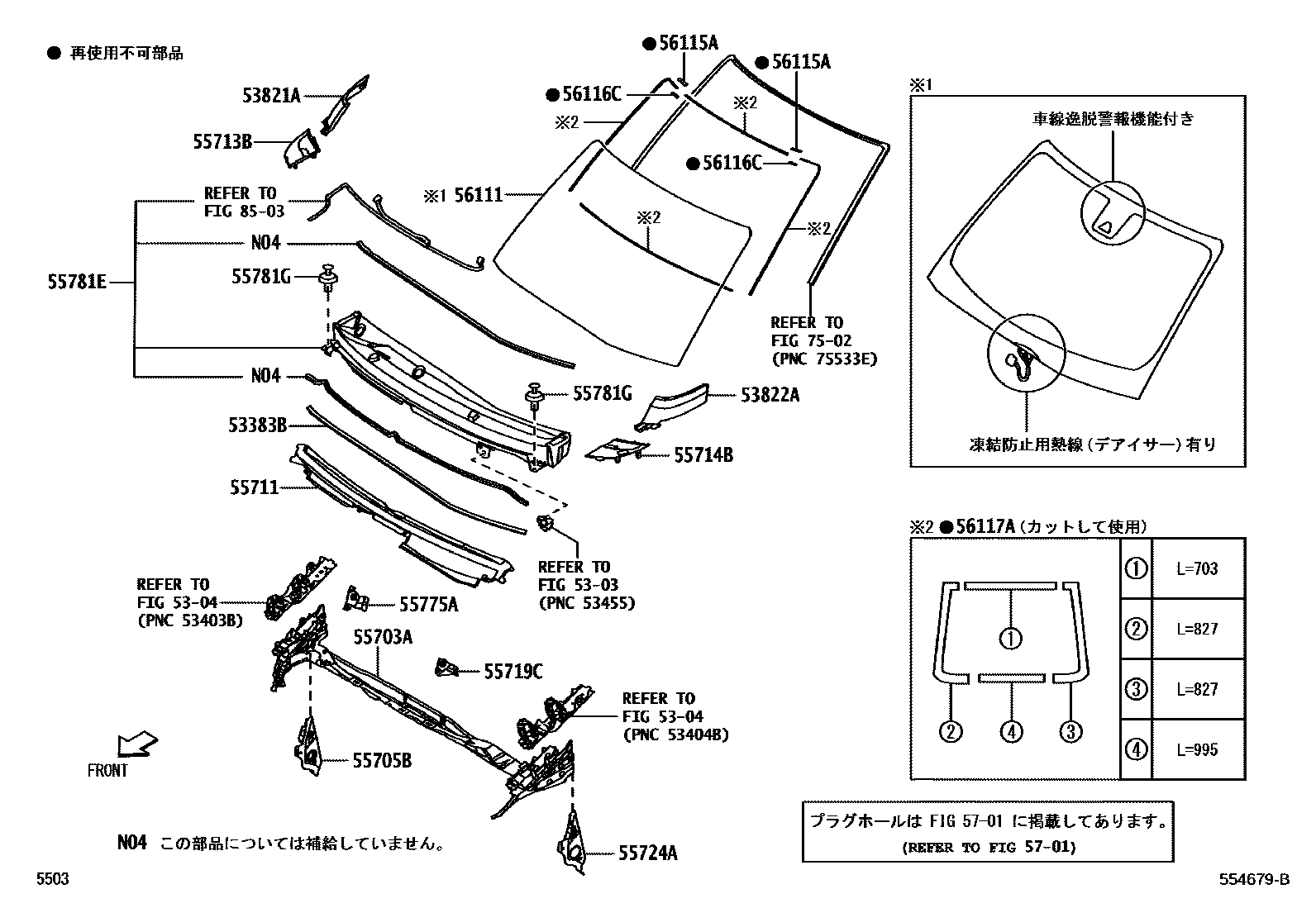

Toyota PIXIS JOY — COWL PANEL & WINDSHIELD GLASS
5303HOOD LOCK & HINGE
5304FRONT FENDER APRON & DASH PANEL
53383BSEAL, HOOD TO COWL TOP
53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH
53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55711PANEL, COWL TOP, OUTER
55713BCOVER, COWL SIDE PANEL HOLE, RH
55714BCOVER, COWL SIDE PANEL HOLE, LH
55719CBRACKET, WINDSHIELD WIPER MOTOR
55724AREINFORCEMENT, COWL TOP SIDE, LH
55775ARETAINER, WINDSHIELD WIPER SHAFT
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
5701HOLE PLUG
7502FRONT MOULDING
8503WINDSHIELD WASHER
22 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota PIXIS JOY
This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota PIXIS JOY. Key components include: HOOD LOCK & HINGE, FRONT FENDER APRON & DASH PANEL, SEAL, HOOD TO COWL TOP, PROTECTOR, FRONT SIDE PANEL, NO.1 RH, PROTECTOR, FRONT SIDE PANEL, NO.1 LH.
