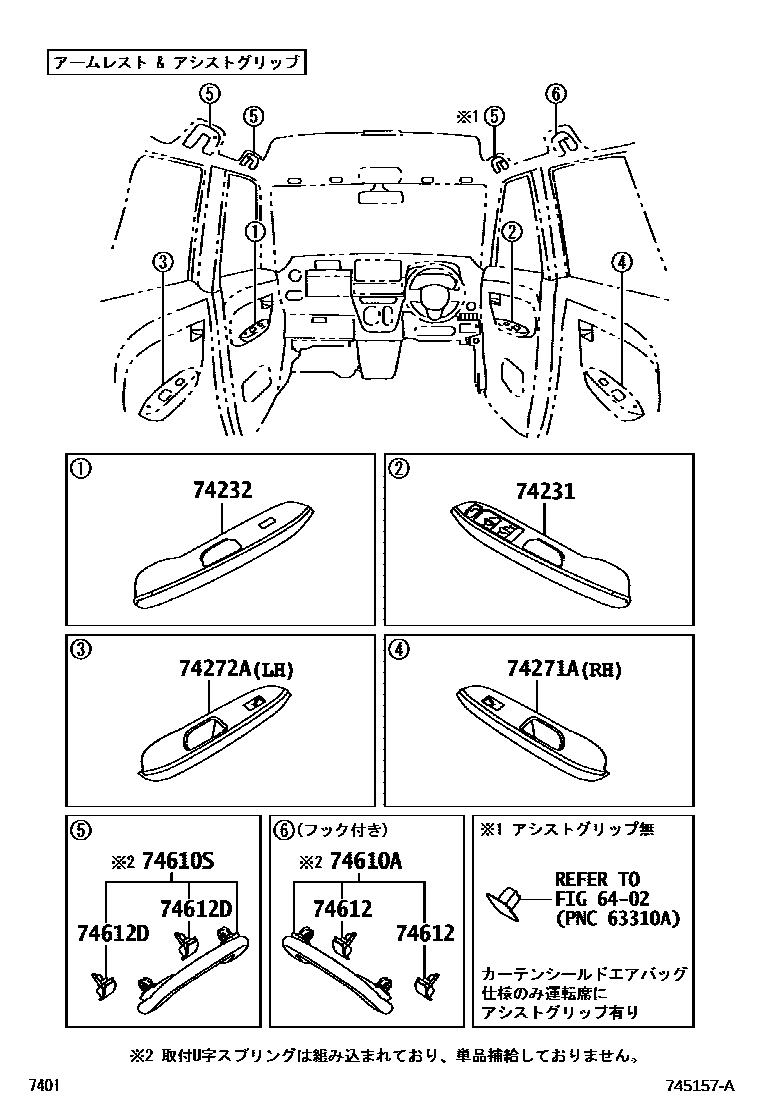

Toyota PIXIS JOY — ARMREST & VISOR

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B2180-B1i201609-202001

main74231-B2200-B1supersedes 74231-B2180-B1i201609-201710

main74231-B2210-C0supersedes 74231-B2200-B1i201609-202001

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-B2140-B1i201609-202001

main74232-B2160-B1supersedes 74232-B2140-B1i201710

main74232-B2170-C0supersedes 74232-B2160-B1i201609-202001

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-B2040-B1i201609-202001

main74271-B2050-B1supersedes 74271-B2040-B1i201609-201710

main74271-B2070-C0supersedes 74271-B2050-B1i201609-202001

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-B2040-B1i201609-202001

main74272-B2050-B1supersedes 74272-B2040-B1i201710

main74272-B2060-C0supersedes 74272-B2050-B1i201609-202001

74610AGRIP SUB-ASSY, ASSIST

main74610-52030-B1i201609-201710

LT.GRAY,TRIM1#,4#

74610SGRIP ASSY, ASSIST

main74610-B2030-B0×2i201609-201710

74612COVER, ASSIST GRIP

main74612-52030-B1×2i201609-201710

LT.GRAY,TRIM1#,4#

74612DCOVER, ASSIST GRIP

main74612-B2070-B0×4i201609-201710

9 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota PIXIS JOY

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PIXIS JOY. Key components include: ROOF HEADLINING & SILENCER PAD, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
