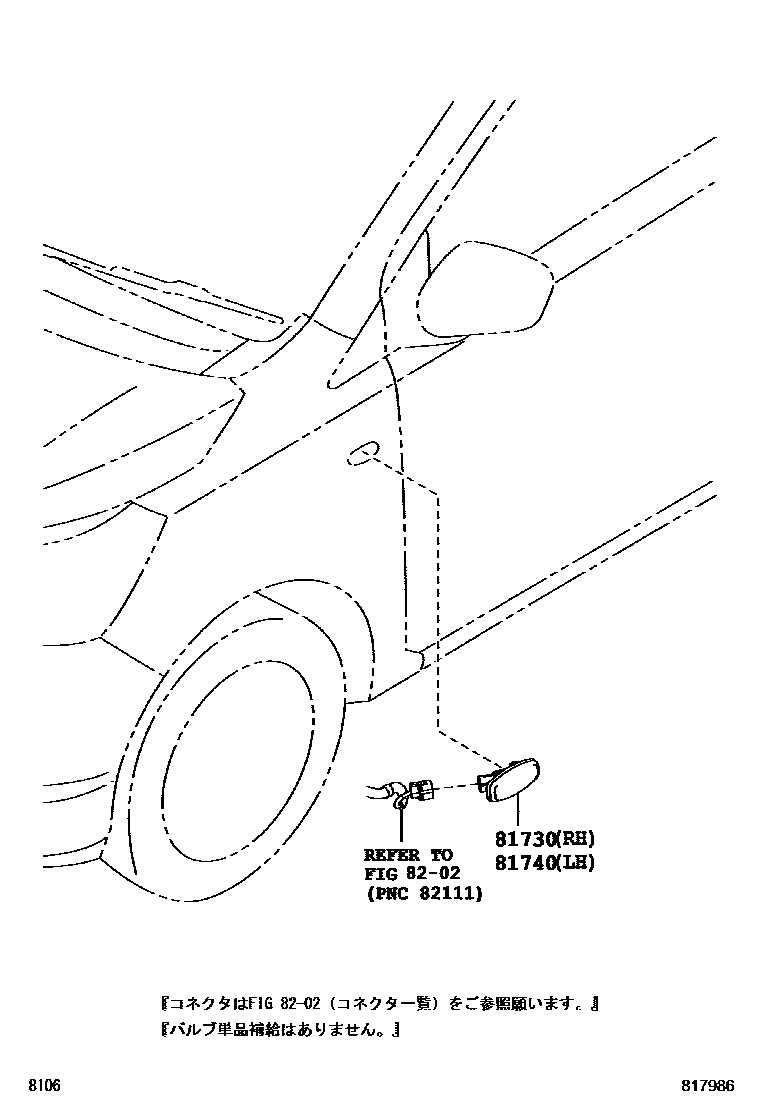

Toyota PIXIS EPOCH — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-B2210i201705

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-B2210i201705

8202WIRING & CLAMP

→ Go to FIG 82-02

3 parts on this diagram · 1 diagram in section

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota PIXIS EPOCH

This section contains 3 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota PIXIS EPOCH. Key components include: LAMP ASSY, SIDE TURN SIGNAL, RH, LAMP ASSY, SIDE TURN SIGNAL, LH, WIRING & CLAMP.
