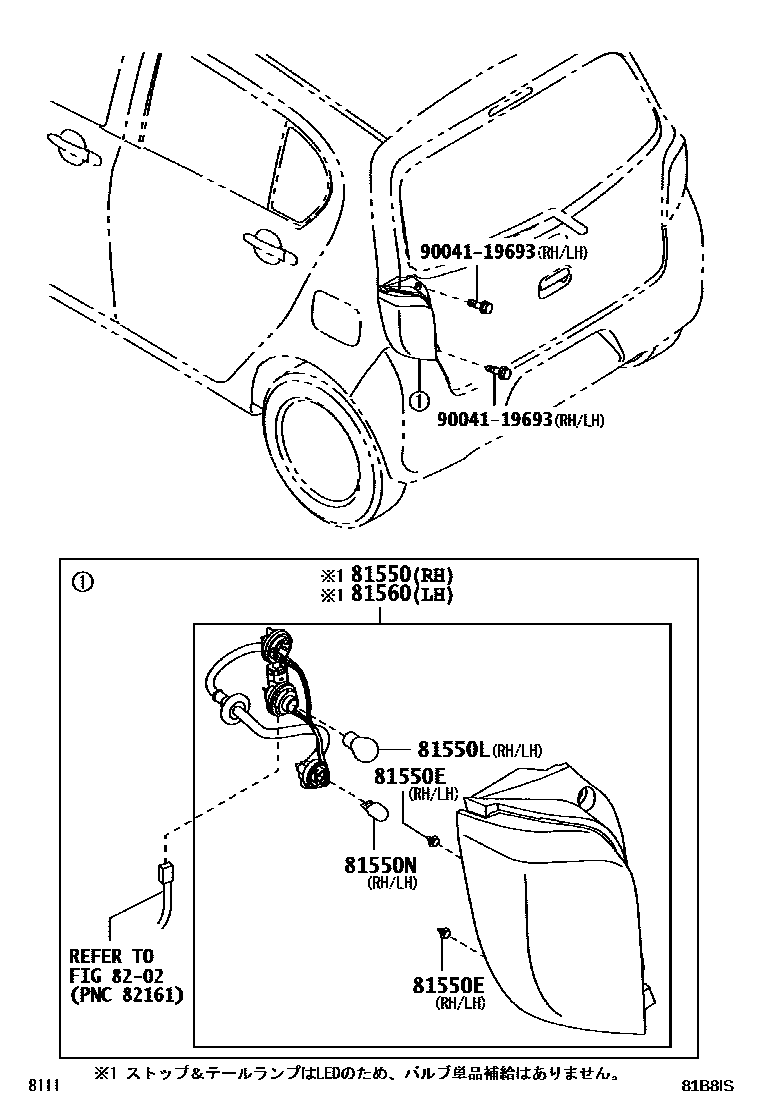

Toyota PIXIS EPOCH — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-B2560i201204-201307

main81550-B2600i201307

81550ECLIP(FOR REAR COMBINATION LAMP)

main9004C-46011×4i201204-201307

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51148×2i201204-201307

81550NBULB, BACK UP LAMP

main90981-11059×2i201204-201307

81560LAMP ASSY, REAR COMBINATION, LH

main81560-B2560i201204-201307

main81560-B2600i201307

8202WIRING & CLAMP

→ Go to FIG 82-02

9004119693

main90041-19693

7 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota PIXIS EPOCH

This section contains 7 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota PIXIS EPOCH. Key components include: LAMP ASSY, REAR COMBINATION, RH, CLIP(FOR REAR COMBINATION LAMP), BULB, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP, LAMP ASSY, REAR COMBINATION, LH.
