Toyota PIXIS EPOCH — PARTIAL ENGINE ASSEMBLY

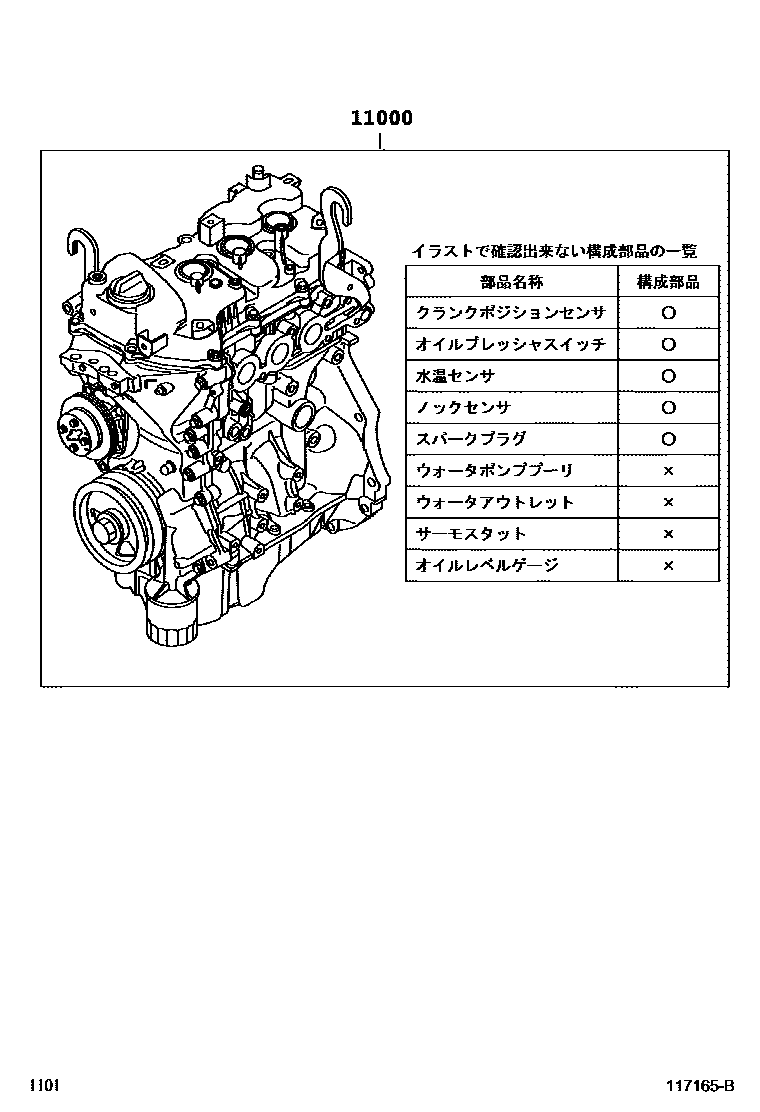

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-B2A21i201307-201407
sub19000-B2A22
main19000-B2A35i201204-201212
sub19000-B2A91
sub82715-B2670
sub90041-79300
main19000-B2A36i201212-201307
sub19000-B2B01
sub82715-B2670
sub90041-79300
main19000-B2D01i201407-201602
main19000-B2D02i201602
sub19000-B2D03
sub17107-B2082
sub94188-00841

1 parts on this diagram · 1 diagram in section
