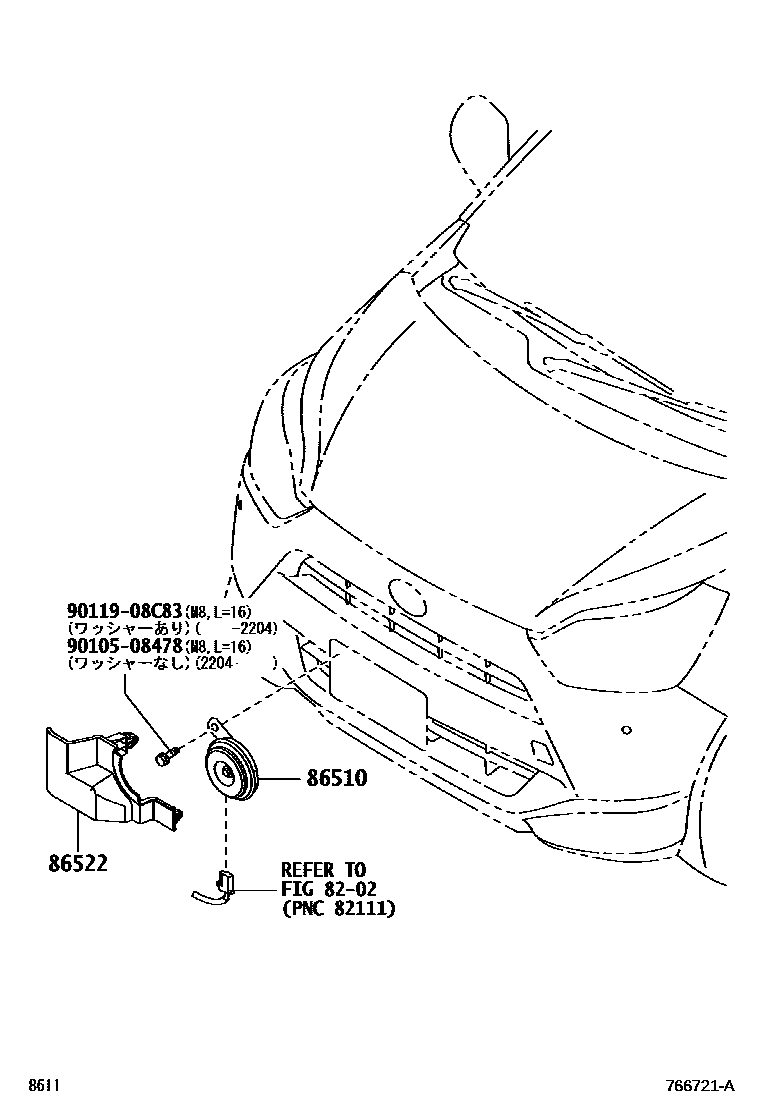

Toyota PIXIS EPOCH — HORN

8202WIRING & CLAMP

→ Go to FIG 82-02

86510HORN ASSY, HIGH PITCHED

main86510-B2140i201705

86522PROTECTOR, HORN

main86522-B2050i201705

9010508478

main90105-08478

9011908C83

main90119-08C83

5 parts on this diagram · 1 diagram in section

HORN for Toyota PIXIS EPOCH

This section contains 5 genuine Toyota parts for the HORN system of the Toyota PIXIS EPOCH. Key components include: WIRING & CLAMP, HORN ASSY, HIGH PITCHED, PROTECTOR, HORN.
