Toyota PIXIS EPOCH — ECO-RUN SYSTEM

8202WIRING & CLAMP

→ Go to FIG 82-02

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

89261ACOMPUTER, ENGINE STOP AND START

main89261-B2200i201705

9004120197

main90041-20197

4 parts on this diagram · 1 diagram in section

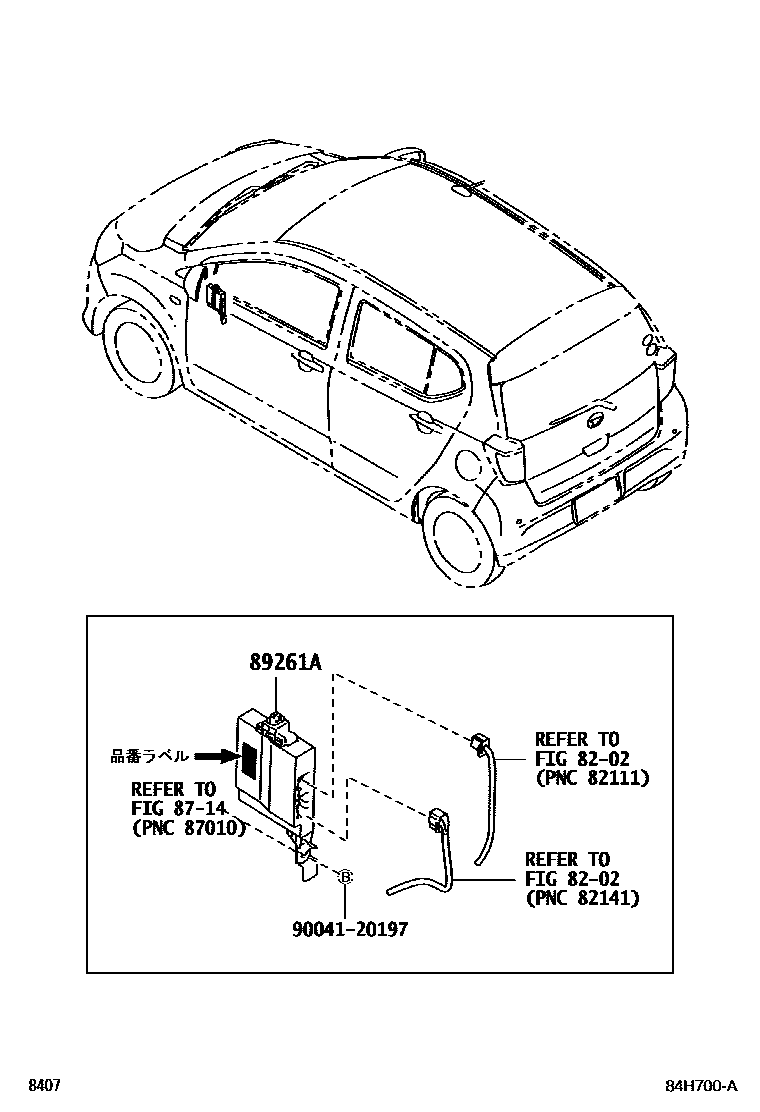

ECO-RUN SYSTEM for Toyota PIXIS EPOCH

This section contains 4 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota PIXIS EPOCH. Key components include: WIRING & CLAMP, HEATING & AIR CONDITIONING - COOLER UNIT, COMPUTER, ENGINE STOP AND START.
