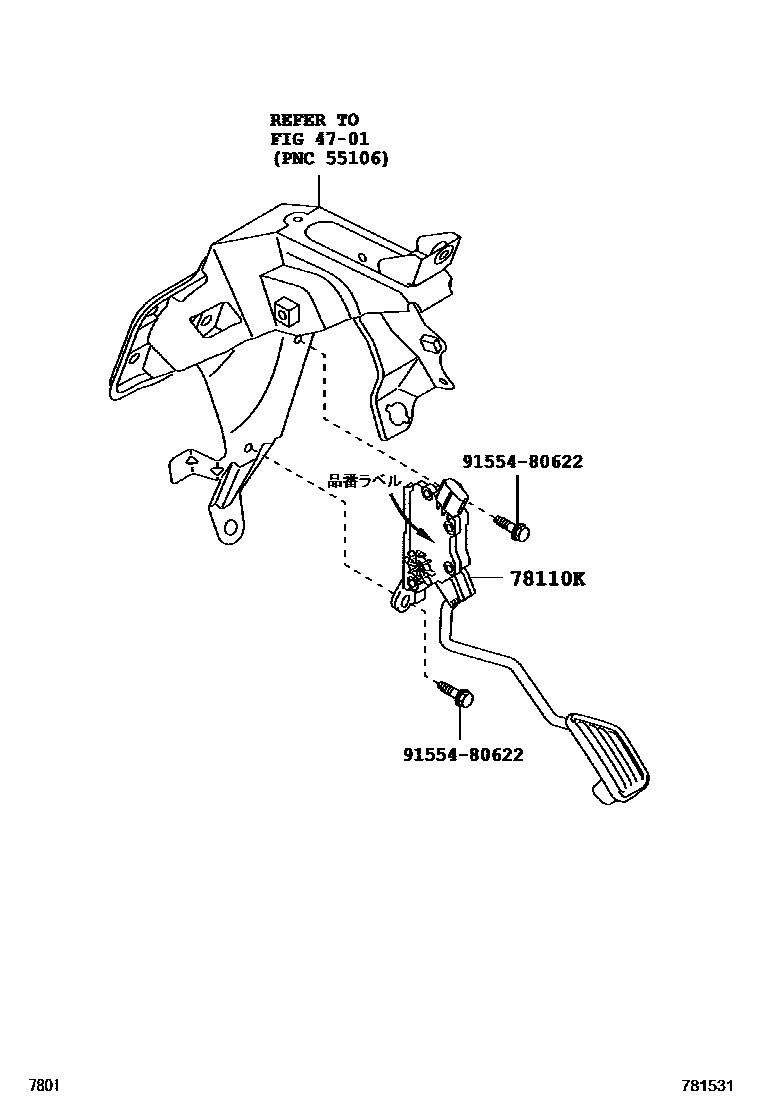

Toyota PIXIS EPOCH — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-B2110i201204-201307

main78110-B2111i201505

9155480622

main91554-80622

3 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota PIXIS EPOCH

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PIXIS EPOCH. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
