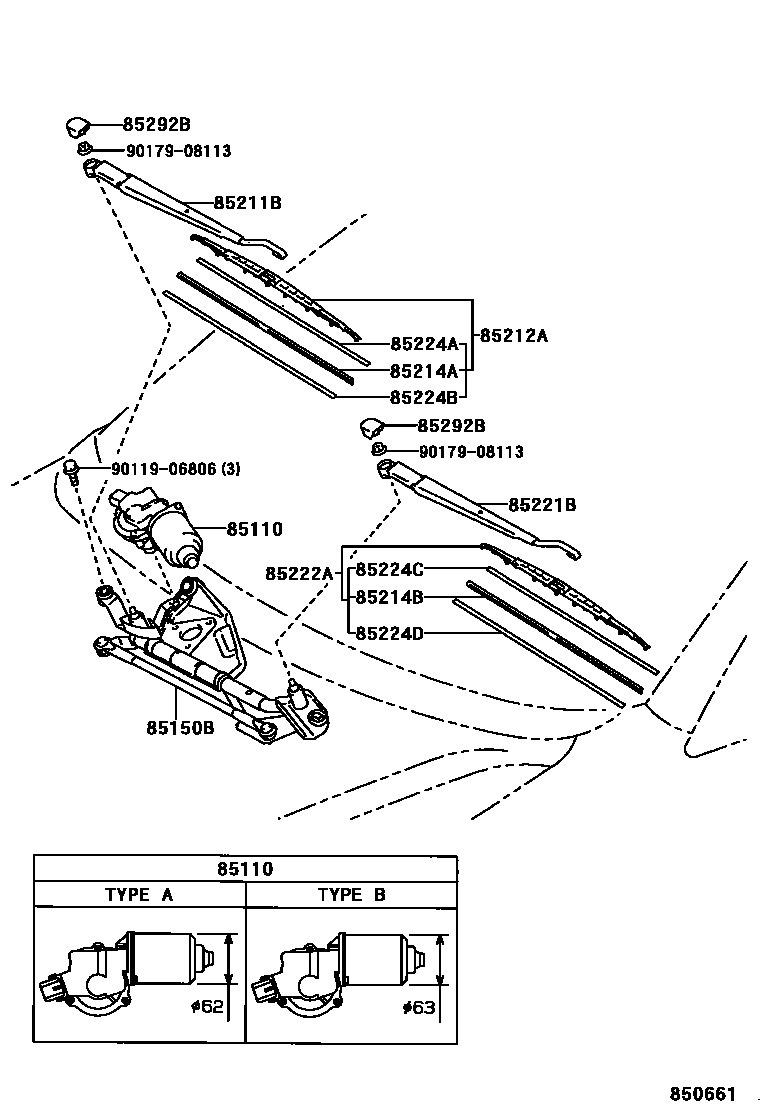

Toyota PICNIC — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44010i199908

85150BLINK ASSY, WIPER

main85150-44011i199908

85211BARM, FRONT WIPER, RH

main85211-44011i199908

85212ABLADE, FR WIPER, RH

main85212-44010i199908

85214ARUBBER, WIPER, RH

main85214-44010i199908

85214BRUBBER, WIPER, LH

main85214-44080i199908

85221BARM, FRONT WIPER, LH

main85221-44011i199908

85222ABLADE, FR WIPER, LH

main85222-44030i199908

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010i199908

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010i199908

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44070i199908

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44070i199908

85292BCAP, FRONT WIPER ARM HEAD

main85292-44010×2i199908

9011906806

main90119-06806

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PICNIC

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PICNIC. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
