Toyota PICNIC — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2i199908

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290i199908

85330JAR ASSY, WINDSHIELD WASHER

main85315-44010i199908

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199908

85332CAP, WINDSHIELD WASHER JAR

main85316-20300i199908

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340i199908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050i199908

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i199908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-28110i199908

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i199908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i199908

L=1450(*H,L=230)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i199908

L=1800(*H,L=1370)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i199908

L=1800(*H,L=540)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i199908

L=1800(*H,L=450)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i199908

L=1450(*H,L=70)

827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A820

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906144

main90119-06144

9046901005

main90469-01005

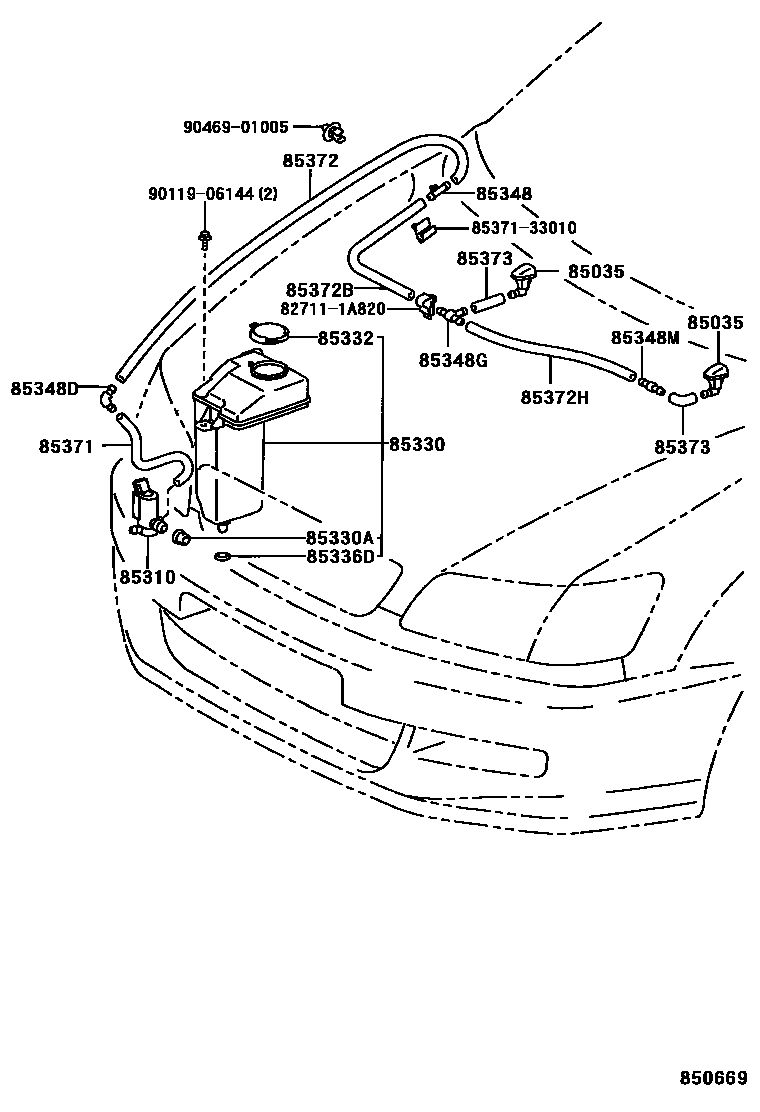

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PICNIC

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PICNIC. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
