Toyota PICNIC — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-B4i199908

LT.BLUISH GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199908

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-B3i199908

LT.BLUISH GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-44010i199908

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-44010i199908

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-44011-A0i199908

WHITE PM.,057

main87910-44011-B0i199908

SILVER ME,199

main87910-44011-D0i199908

WINE RED MC,3J8

main87910-44011-H0i199908

DK.TURQUOISE MC.,760

main87910-44011-H1i200004

TURQUOISE ME.,765

main87910-44011-J0i199908

DK.BLUE MM.GR.,8K5

main87910-44011-J1i199908-200004

BLUE ME.AMC.,8N2

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-44011-A0i199908

WHITE PM.,057

main87940-44011-B0i199908

SILVER ME,199

main87940-44011-D0i199908

WINE RED MC,3J8

main87940-44011-H0i199908

DK.TURQUOISE MC.,760

main87940-44011-H1i200004

TURQUOISE ME.,765

main87940-44011-J0i199908

DK.BLUE MM.GR.,8K5

main87940-44011-J1i199908-200004

BLUE ME.AMC.,8N2

9010506216

main90105-06216

9015450005

main90154-50005

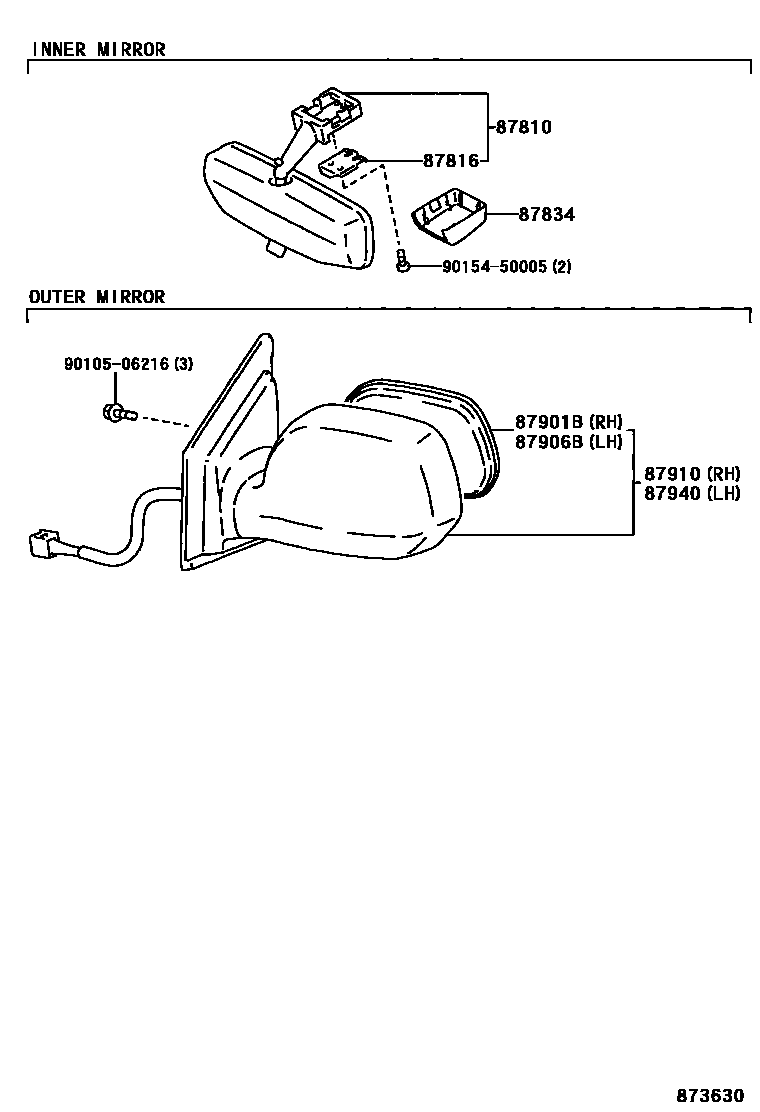

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota PICNIC

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota PICNIC. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
