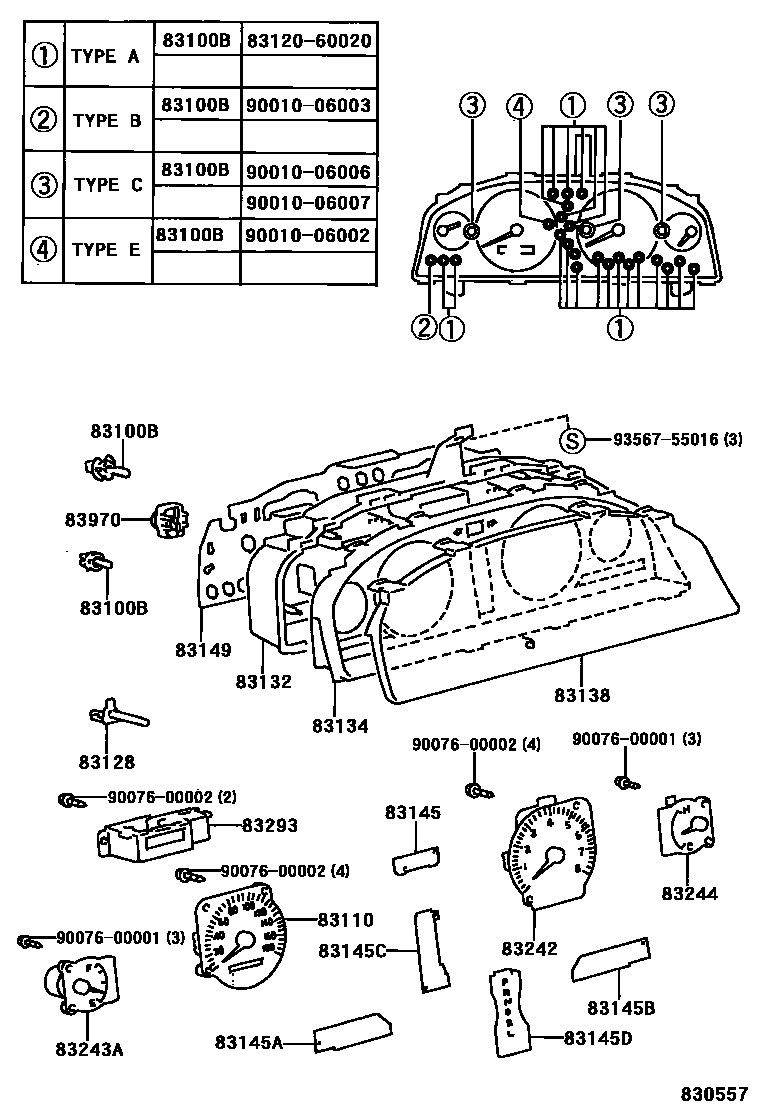

Toyota PICNIC — METER

83100BBULB, COMBINATION METER, NO.1

main83120-60020×18i199908

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

main90010-06002i199908

12V3.0W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION

main90010-06003i199908

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90010-06006×3i199908

12V3.4W,W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-44010i199908

83128KNOB, TRIP COUNTER

main83224-44010i199908

83132CASE, COMBINATION METER

main83841-44010i199908

83134COVER, COMBINATION METER, NO.1

main83821-44010i199908

83138GLASS, SPEEDOMETER

main83852-20130i199908

83145LENS, METER, NO.1

main83831-20130i199908

83145ALENS, METER, NO.2

main83832-20130i199908

83145BLENS, METER, NO.3

main83831-20150i199908

83145CLENS, METER, NO.4

main83831-44010i199908

83145DLENS, METER, NO.5

main83887-44010i199908

83149PLATE, METER CIRCUIT

main83861-44120i199908

83242TACHOMETER ASSY, ENGINE

main83881-44010i199908

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-44010i199908

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-44010i199908

83293COMPUTER, TOTAL COUNTER MODULE

main83293-44010i199908

83970BUZZER ASSY, REVERSE WARNING

main83970-12020i199908

9007600001

main90076-00001

9007600002

main90076-00002

9356755016

main93567-55016

20 parts on this diagram · 2 diagrams in section

METER for Toyota PICNIC

This section contains 23 genuine Toyota parts for the METER system of the Toyota PICNIC. Key components include: BULB, COMBINATION METER, NO.1, SPEEDOMETER ASSY, KNOB, TRIP COUNTER, CASE, COMBINATION METER, COVER, COMBINATION METER, NO.1.
