Toyota PICNIC — CONSOLE BOX & BRACKET

55539JCOVER, SPARE SWITCH HOLE

main55539-12130-B2i199908

MD.MOON MIST,TRIM1#

55601DTRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH

main55601-44010-B0i199908

MD.MOON MIST,TRIM1#

55601ETRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH

main55601-44030-B0i199908

MD.MOON MIST,TRIM1#

55603CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER

main55603-44010i199908

58810JBOX ASSY, CONSOLE

main58810-44010-B0i199908

MD.MOON MIST,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58904-44010-B0i199908

MD.MOON MIST,TRIM1#

9356755014

main93567-55014

9356755016

main93567-55016

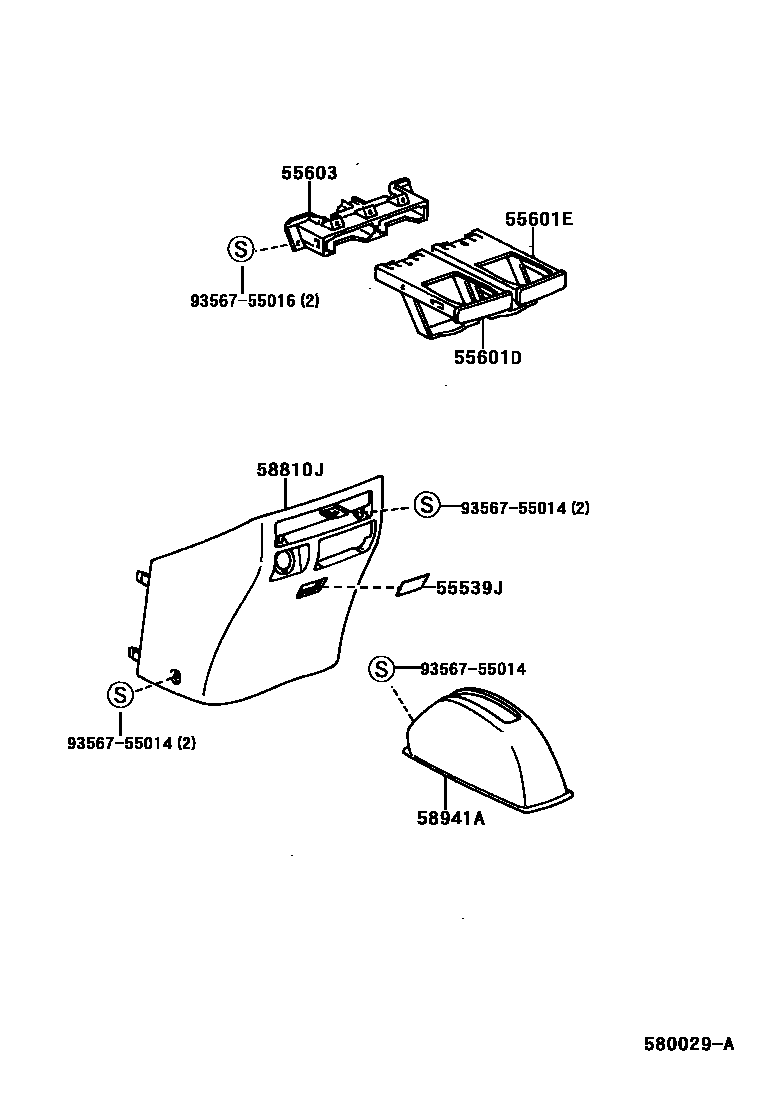

8 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota PICNIC

This section contains 8 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota PICNIC. Key components include: COVER, SPARE SWITCH HOLE, TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH, TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH, CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER, BOX ASSY, CONSOLE.
