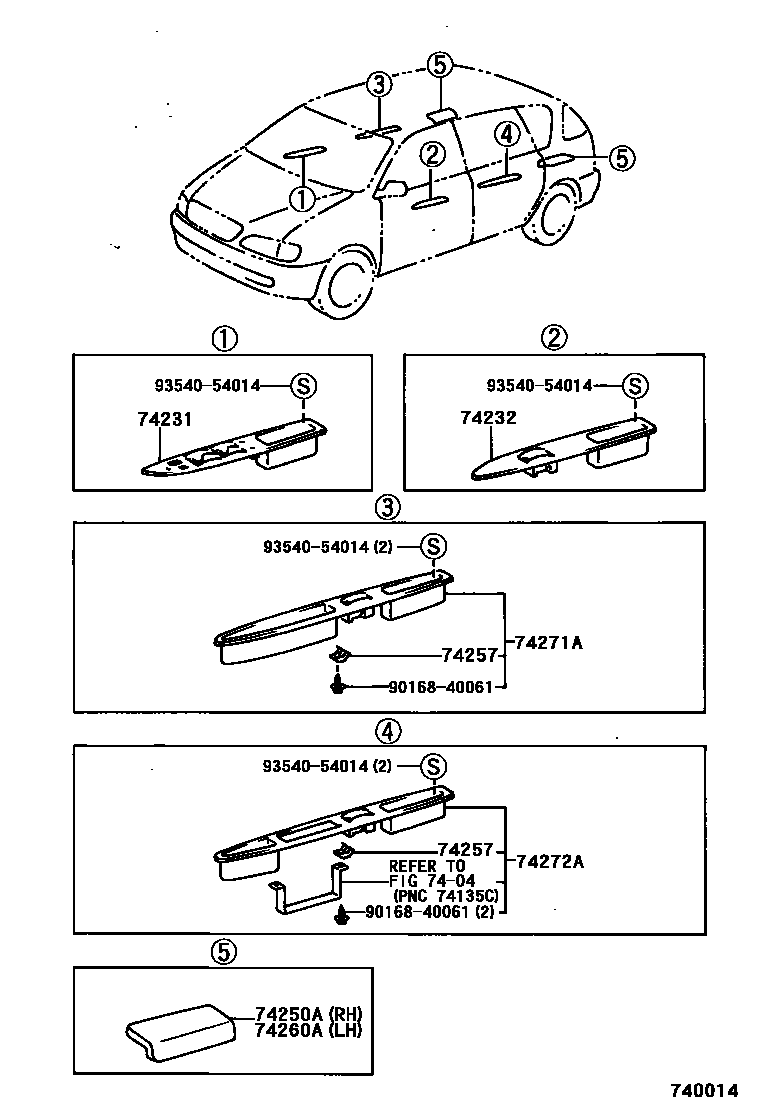

Toyota PICNIC — ARMREST & VISOR

7404ASH RECEPTACLE

→ Go to FIG 74-04

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-44010-B0i199908

MD.MOON MIST,TRIM1#

main74231-44030-B0i199908

W(TWIN MOON ROOF),MD.MOON MIST,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-44010-B0i199908

MD.MOON MIST,TRIM1#

74250AARMREST ASSY, QUARTER, RH

main74250-44052-B2i199908

MD.MOON MIST,TRIM1#

74257SPRING, ARMREST, NO.1

main74257-44010×2i199908

74260AARMREST ASSY, QUARTER, LH

main74260-44022-B2i199908

MD.MOON MIST,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-44010-B0i199908

MD.MOON MIST,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-44010-B0i199908

MD.MOON MIST,TRIM1#

9016840061

main90168-40061

9354054014

main93540-54014

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota PICNIC

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PICNIC. Key components include: ASH RECEPTACLE, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, QUARTER, RH, SPRING, ARMREST, NO.1.
