Toyota PICNIC — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
9011906635
main90119-06635
9017906158
main90179-06158
91511B0814
main91511-B0814
9165140628
main91651-40628
9616000400
main96160-00400
9616000600
main96160-00600

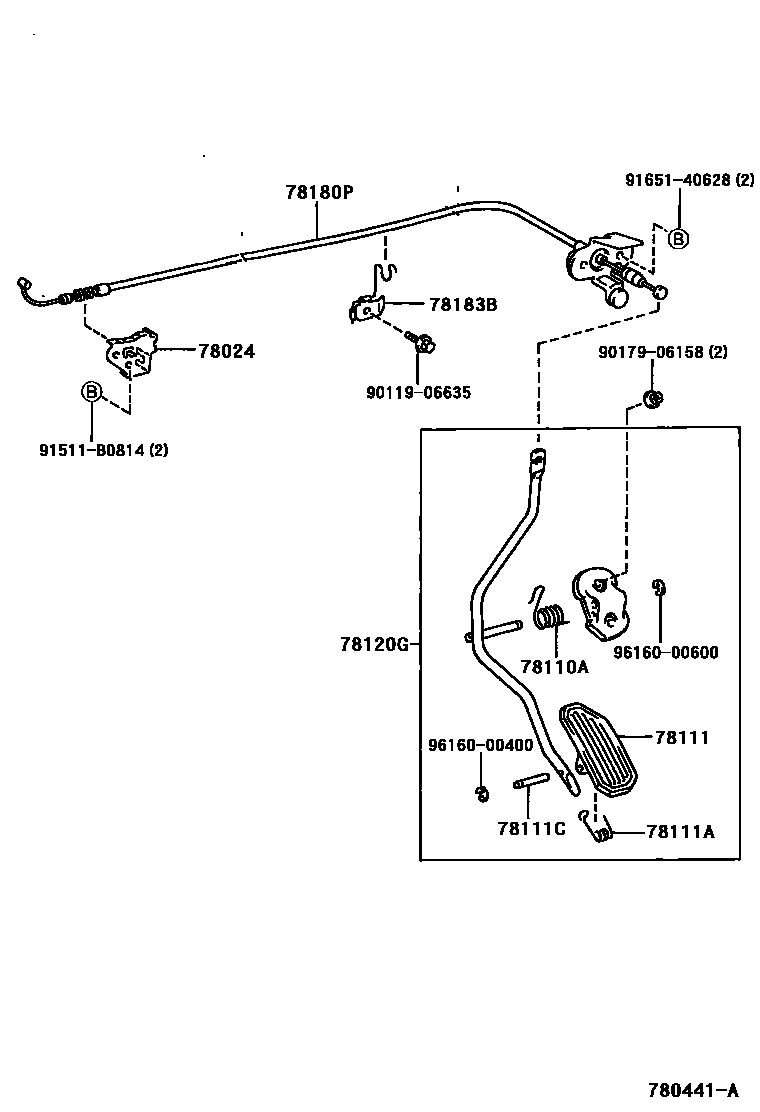

14 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota PICNIC
This section contains 14 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PICNIC. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
