Toyota PICNIC — PARTIAL ENGINE ASSEMBLY

Parts diagram

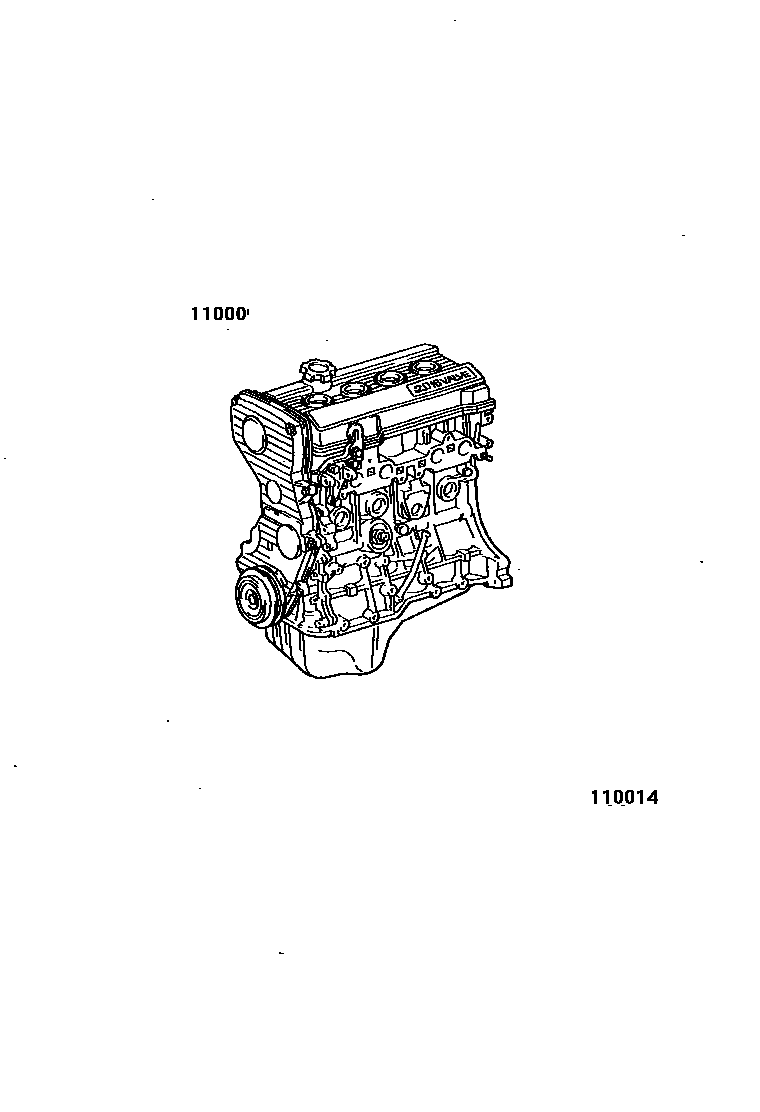

11000ENGINE ASSY, PARTIAL

main19000-6A160i199709-199808

main19000-6A161i199808

main19000-7A070i199609-199804

main19000-7A470i199804

1 parts on this diagram · 1 diagram in section
