Toyota PICNIC — HEATING & AIR CONDITIONING - SET

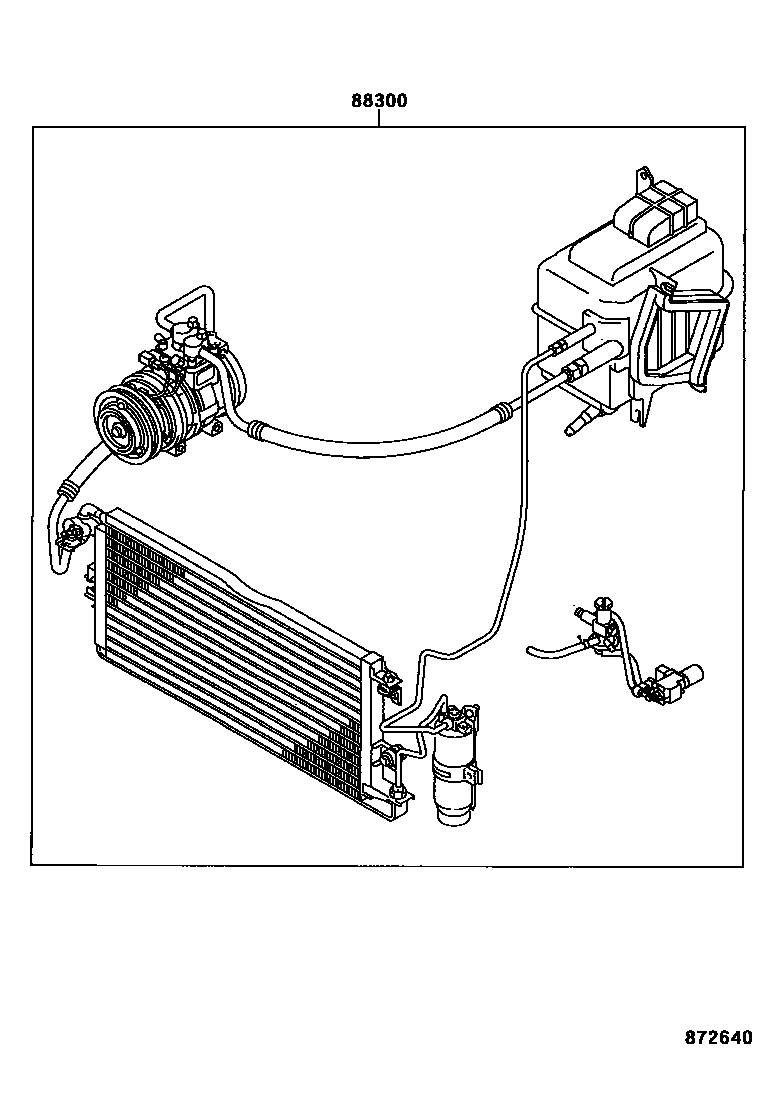

Parts diagram

88300COOLER & ACCESSORY ASSY

main88300-44010i199609-199804

main88300-44020i199609-199804

main88300-44030i199709-199804

main88300-44040i199709-199804

main88300-44050i199804-199808

main88300-44060i199804-199808

main88300-44070i199804-199808

main88300-44080i199804-199808

main88300-44090i199808-199910

main88300-44100i199808-199910

main88300-44110i199808-199910

main88300-44120i199808-199910

main88300-44130i199910

main88300-44140i199910

main88300-44150i199910-200008

main88300-44160i199910-200008

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota PICNIC

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota PICNIC. Key components include: COOLER & ACCESSORY ASSY.
