Toyota PICNIC — CONSOLE BOX & BRACKET

55601DTRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH

main55601-44010-B0i199609-200105

MD.MOON MIST,TRIM1#

main55601-44040-B0i199609-200105

MD.MOON MIST,TRIM1#

55601ETRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH

main55601-44020-B0i199609-200105

MD.MOON MIST,TRIM1#

main55601-44030-B0i199609-200105

MD.MOON MIST,TRIM1#

55603CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER

main55603-44010i199609

main55603-44020i199609

58810JBOX ASSY, CONSOLE

main58810-44010-B0i199609-200105

MD.MOON MIST,TRIM1#

main58810-44020-B0i199609-200105

MD.MOON MIST,TRIM1#

main58810-44030-B0i199609-200105

MD.MOON MIST,TRIM1#

main58810-44040-B0i199609-200105

MD.MOON MIST,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-44010-B0i199609-200105

MD.MOON MIST,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58904-44010-B0i199609-200105

MD.MOON MIST,TRIM1#

main58904-44020-B0i199609-200105

MD.MOON MIST,TRIM1#

58985BRETAINER, CONSOLE BOX, NO.1

main58985-44010i199609

9151260616

main91512-60616

9356755014

main93567-55014

9356755016

main93567-55016

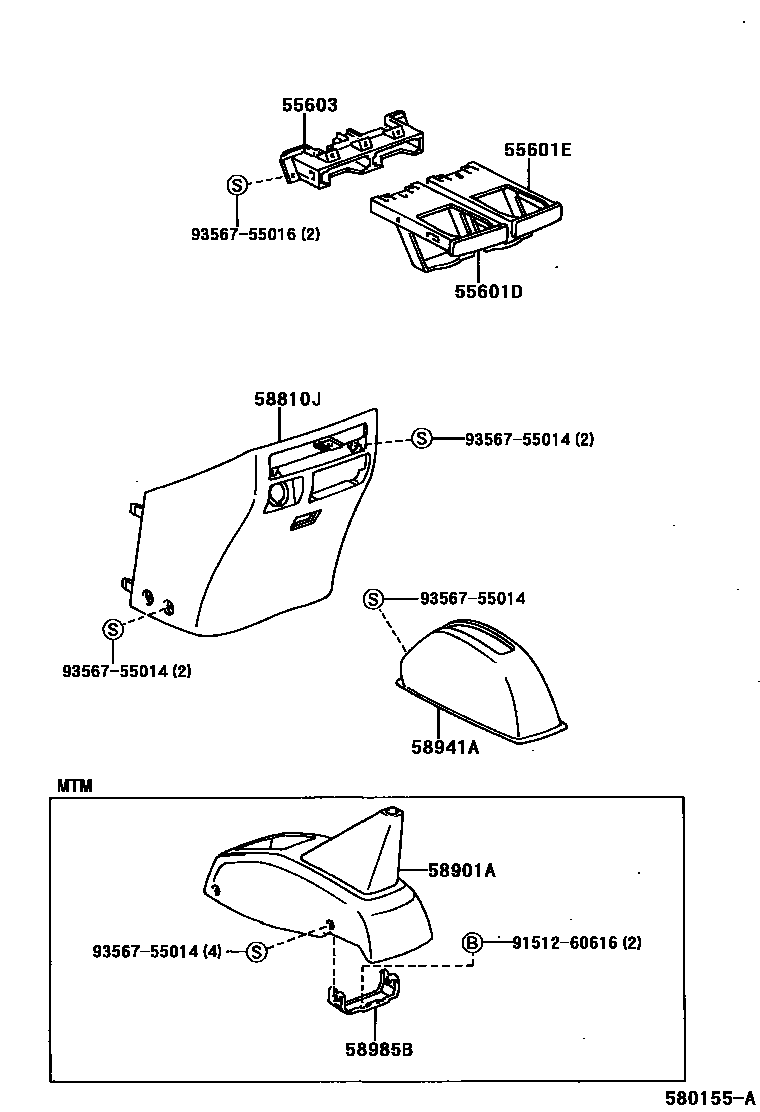

10 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota PICNIC

This section contains 12 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota PICNIC. Key components include: COVER, SPARE SWITCH HOLE, TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH, TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH, CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER.
