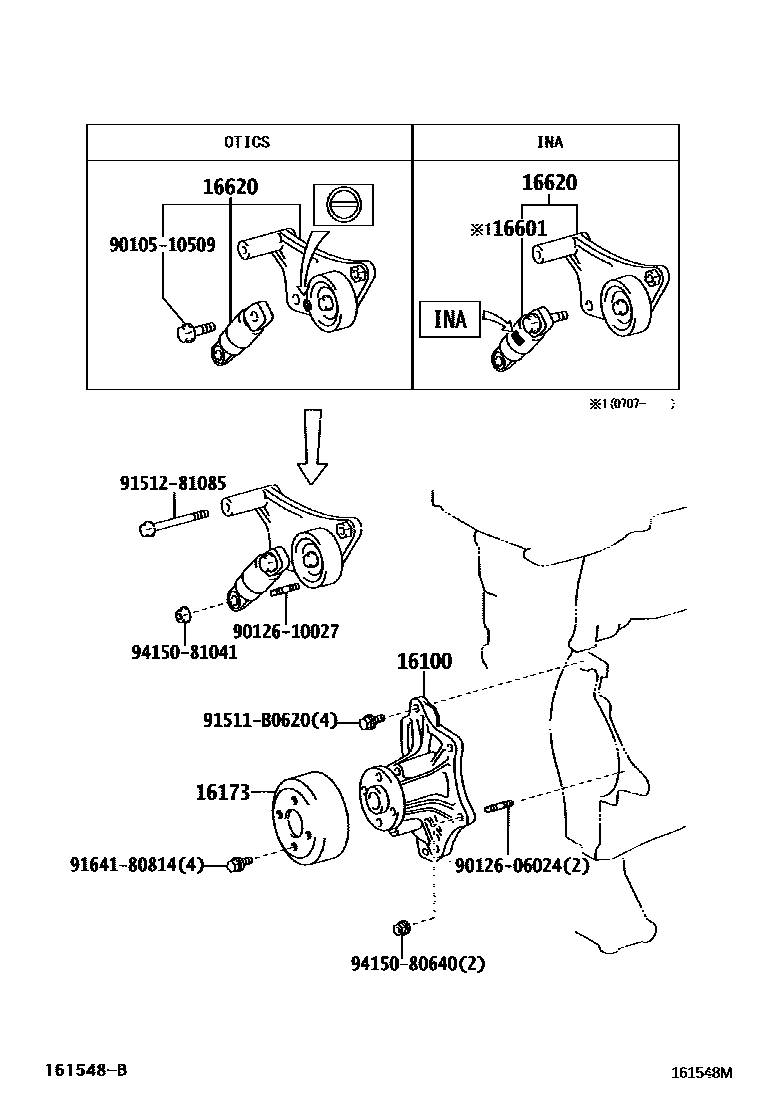

Toyota PICNIC/AVENSIS VERSO — WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFE..ACM20200105-200701

sub16100-28041

main16100-28041i1AZFE,2AZFE..ACM2#200701

main16100-29135i1CDFTV..CLM20200105-200507

16173PULLEY, WATER PUMP

main16173-28020i1AZFE..ACM20200105-200310

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28041i1AZFE,2AZFE..ACM2#200707-200801

INA

sub16601-28050

main16601-28050i1AZFE,2AZFE..ACM2#200801-200912

INA

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W110i1AZFE,2AZFE..ACM2#200605-200608

sub16620-28070

main16620-28011i1AZFE,2AZFE..ACM2#200105-200605

sub16620-0W110

main16620-28012i1AZFE,2AZFE..ACM2#200703-200707

sub16620-28090

main16620-28070i1AZFE,2AZFE..ACM2#200608-200703

sub16620-28012

main16620-28071i1AZFE,2AZFE..ACM2#200707-200801

sub16620-28090

main16620-28090i1AZFE,2AZFE..ACM2#200801-200912

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 2 diagrams in section
