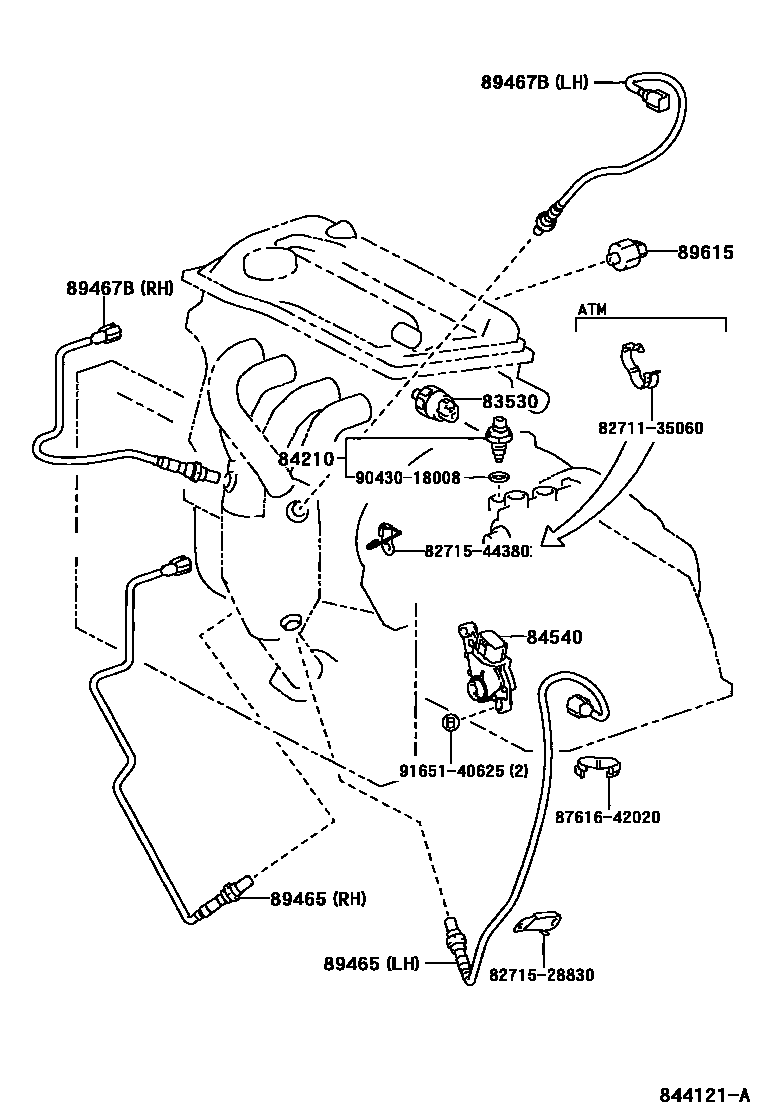

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACM2#200105-200310

DENSO

main83530-60010iCLM20200105-200507

main83530-60020iACM20200105-200310

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACM20,CLM20..MTM200105-200507

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-32110iACM20..ATM200105-200310

main84540-48010iACM2#..ATM200310-200912

89465SENSOR, OXYGEN

main89465-28270iACM21200310-200508

main89465-44050iACM20200105-200310

LH

main89465-44060iACM20200105-200310

RH

main89467-28010iACM21200508

sub89467-72010

89467BSENSOR, AIR FUEL RATIO

main89467-28010iACM20..EUR200310-200507

sub89467-72010

main89467-42020iACM20200105-200310

RH

main89467-44030iACM20200105-200310

LH

89615SENSOR, KNOCK CONTROL

main89615-20090iACM2#200310

main89615-44010iACM20200105-200310

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

8271528830BRACKET,WIRING HARNESS CLAMP

main82715-28830

8271544380BRACKET,WIRING HARNESS CLAMP

main82715-44380

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9043018008

main90430-18008

9165140625

main91651-40625
