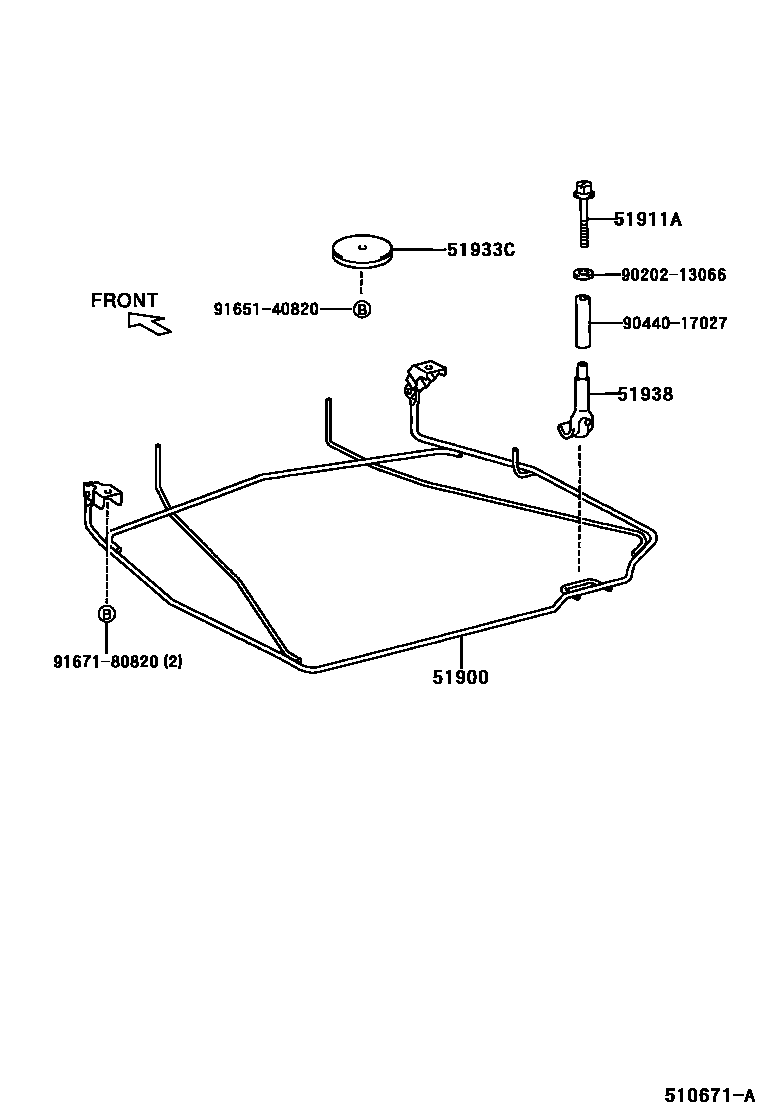

Toyota PICNIC/AVENSIS VERSO — SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-44060iACM20,CLM20200105-200310

51911ABOLT, SPARE WHEEL

main51911-44030iACM20,CLM20200105-200310

51933CSTOPPER, SPARE WHEEL

main51904-44020iACM20,CLM20200105-200310

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iACM20,CLM20200105-200310

9020213066

main90202-13066

9044017027

main90440-17027

9165140820

main91651-40820

9167180820

main91671-80820

8 parts on this diagram · 1 diagram in section
