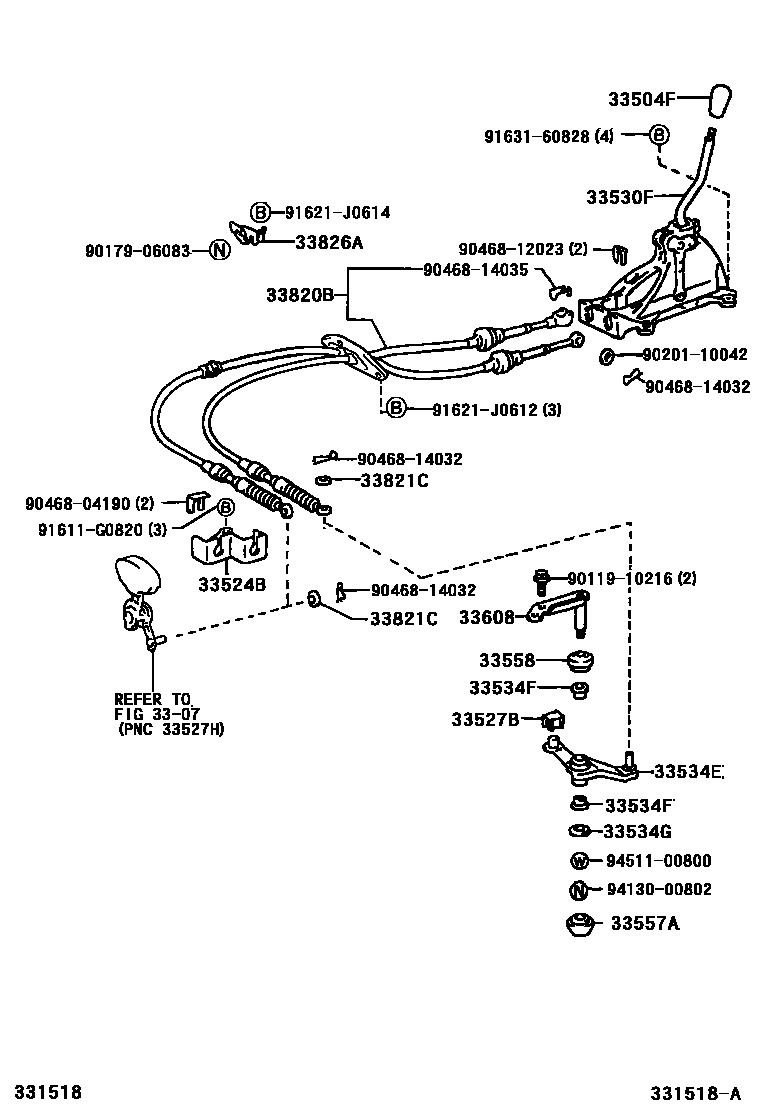

Toyota PICNIC/AVENSIS VERSO — SHIFT LEVER & RETAINER
3307
33504FKNOB SUB-ASSY, SHIFT LEVER
33524BBRACKET, CONTROL CABLE
33527BBUSH (FOR CONTROL SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33820BCABLE ASSY, TRANSMISSION CONTROL
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=30
9011910216
main90119-10216
9017906083
main90179-06083
9020110042
main90201-10042
9046804190
main90468-04190
9046812023
main90468-12023
9046814032
main90468-14032
9046814035
main90468-14035
91611G0820
main91611-G0820
91621J0612
main91621-J0612
91621J0614
main91621-J0614
9163160828
main91631-60828
9413000802
main94130-00802
9451100800
main94511-00800
27 parts on this diagram · 2 diagrams in section
