Toyota PICNIC/AVENSIS VERSO — METER

0001 1 0002 1

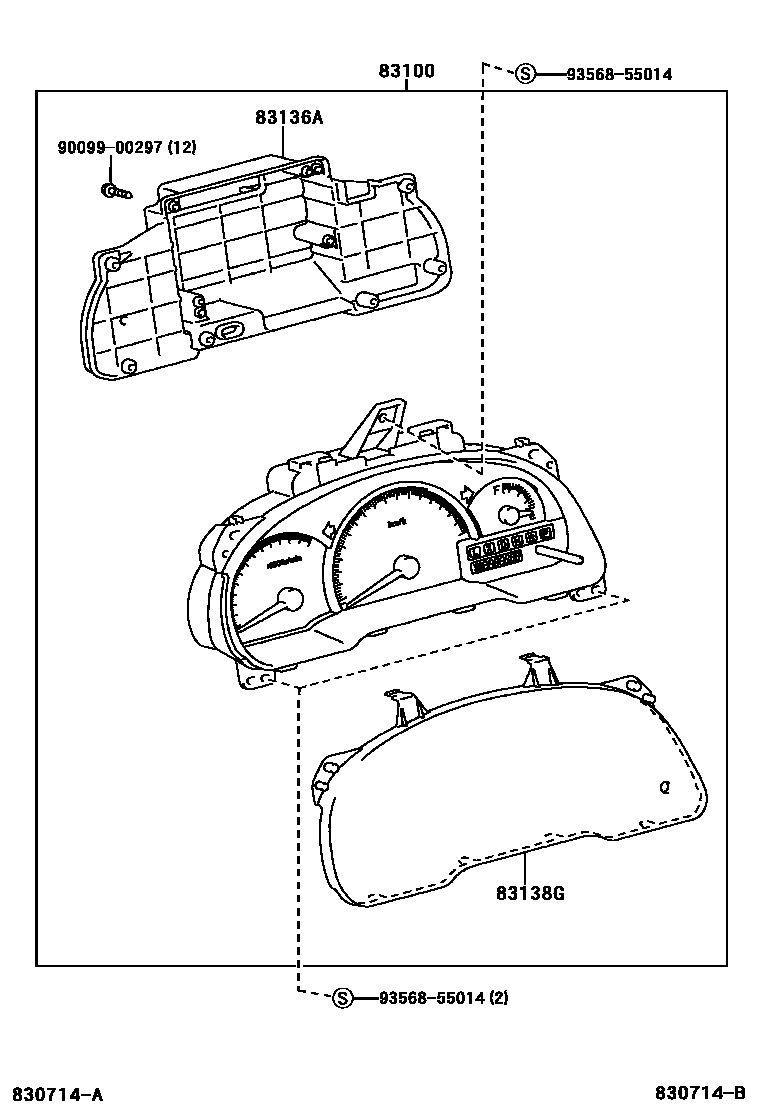

83100METER ASSY, COMBINATION

main83800-44490iACM20..LHD..MTM200105-200310

main83800-44500iACM20..LHD..ATM200105-200310

main83800-44510iACM20..RHD..MTM..EUR200105-200310

main83800-44520iACM20..RHD..ATM..EUR200105-200310

main83800-44530iCLM20..LHD200105-200310

main83800-44540iCLM20..RHD200105-200310

main83800-44550iACM20..MTM..ARL200110-200208

sub83800-44551

main83800-44550iACM20..RHD..07S..MTM..EUR200202-200208

NEW ZEALAND SPEC

sub83800-44551

main83800-44551iACM20..MTM..ARL200208-200310

NEW ZEALAND SPEC

main83800-44560iACM20..ATM..ARL200110-200310

main83800-44560iACM20..RHD..07S..ATM..EUR200105-200310

NEW ZEALAND SPEC

main83800-44570iACM20..GEN200105-200310

main83800-44890iACM21200310-200508

sub83800-44C40

main83800-44A00iACM20..GEN200310

main83800-44A10iACM20..LHD..MTM200310-200507

main83800-44A10iACM20..RHD..MTM200410-200507

KM/H

main83800-44A20iACM20..LHD..ATM200310-200507

main83800-44A30iACM20..RHD..MTM200310-200507

MILE/H+KM/H

main83800-44A40iACM20..RHD..ATM..EUR200310-200507

MILE/H+KM/H

main83800-44A50iCLM20..RHD200410-200507

KM/H

main83800-44A50iCLM20..LHD200310-200507

main83800-44A60iCLM20..RHD200310-200507

MILE/H+KM/H

main83800-44B50iACM20..RHD..ATM..EUR200410-200507

KM/H

main83800-44C40iACM21200508-200808

sub83800-44C42

main83800-44C42iACM21200808

83136ACOVER, COMBINATION METER

main83821-44490iACM20,CLM20200105-200310

83138GGLASS, COMBINATION METER

main83852-44410iACM20,CLM20200310

main83852-44490iACM20,CLM20200105-200310

9009900297

main90099-00297

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section
