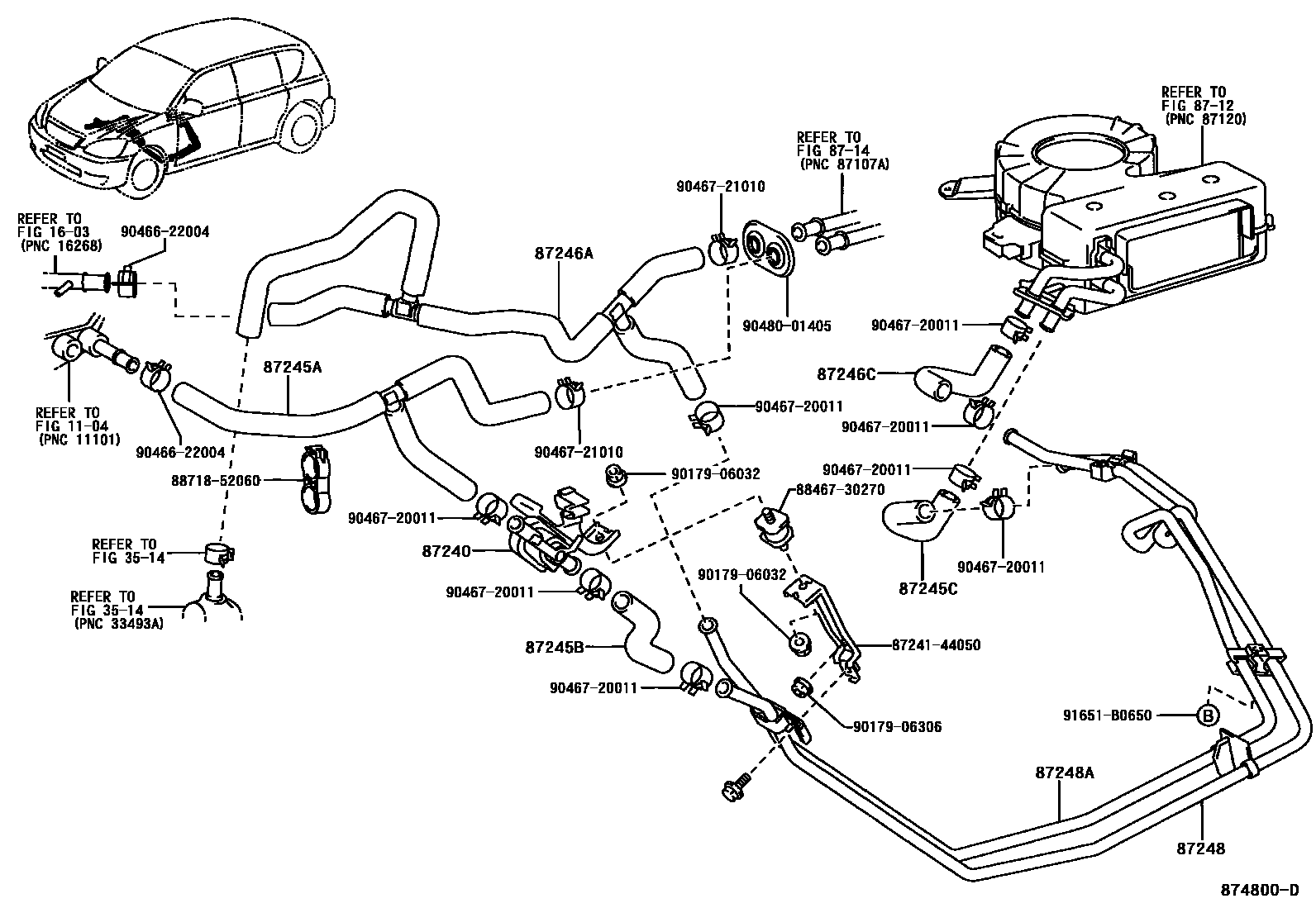

Toyota PICNIC/AVENSIS VERSO — HEATING & AIR CONDITIONING - WATER PIPING

0001 1W(REAR HEATER) 0002 1 0003 1W(REAR HEATER) 0004 1W(REAR HEATER) 0005 1W(REAR HEATER) 0006 1W(REAR HEATER) 0007 1W(REAR HEATER) 0008 1 0009 1W(REAR HEATER) 0010 1W(REAR HEATER) 0011 1 0012 1W(REAR HEATER) 0013 1 0014 1W(REAR HEATER) 0015 1W(REAR HEATER) 0016 1 0017 1W(REAR HEATER)

1104

1603

3514

8712

8714

87240VALVE ASSY, HEATER WATER

main87240-44030iACM20,CLM20..RHD..EUR200105-200507

main87240-44040iACM20,CLM20..LHD200105-200507

87245AHOSE, HEATER WATER, INLET A

main87209-44050iACM20..RHD..EUR200105-200310

W(REAR HEATER)

main87209-44060iACM20..LHD200105-200310

W(REAR HEATER)

main87209-44070iCLM20..RHD200105-200507

W(REAR HEATER)

main87209-44080iCLM20..LHD200105-200507

W(REAR HEATER)

main87209-44200iACM20..RHD..EUR200310-200507

main87209-44210iACM20..LHD200310-200507

W(REAR HEATER)

main87245-44470iACM20..ARL,GEN200105-200310

main87245-44490iACM20..LHD200105-200310

main87245-44510iCLM20..LHD200105-200507

main87245-44780iACM2#..ARL,GEN200310

main87245-44790iACM20..LHD200310-200311

main87245-44A40iACM20..LHD200311-200507

87245BHOSE, HEATER WATER, INLET B

main87245-44550iACM20,CLM20..RHD..EUR200105-200507

main87245-44560iACM20,CLM20..LHD200105-200507

87245CHOSE, HEATER WATER ,INLET C

main87245-44530iACM20,CLM20..EUR200105-200507

87246AHOSE, HEATER WATER, OUTLET A

main87209-44010iACM20..RHD..MTM..EUR200105-200310

W(REAR HEATER)

main87209-44020iACM20..LHD..MTM200105-200310

W(REAR HEATER)

main87209-44030iCLM20..RHD200105-200507

W(REAR HEATER)

main87209-44040iCLM20..LHD200105-200408

W(REAR HEATER)

main87209-44090iACM20..ATM..(ARL,GEN)200105-200310

main87209-44100iACM20..LHD..ATM200105-200310

main87209-44110iACM20..RHD..ATM..EUR200105-200310

W(REAR HEATER)

main87209-44120iACM20..LHD..ATM200105-200310

W(REAR HEATER)

main87209-44140iACM2#..ARL,GEN200310

main87209-44150iACM20..LHD..ATM200310-200311

main87209-44160iACM20..RHD..ATM..EUR200310-200507

W(REAR HEATER)

main87209-44170iACM20..LHD..ATM200310-200507

W(REAR HEATER)

main87209-44250iACM20..LHD..ATM200311-200507

main87209-44270iCLM20..LHD200408-200507

W(REAR HEATER)

main87245-44480iACM20..MTM..ARL200110-200310

main87245-44500iACM20..LHD..MTM200105-200310

main87245-44520iCLM20..LHD200105-200507

main87245-44800iACM20..LHD..MTM200310-200311

main87245-44850iACM20..RHD..MTM200310-200507

W(REAR HEATER)

main87245-44860iACM20..LHD..MTM200310-200507

W(REAR HEATER)

main87245-44A50iACM20..LHD..MTM200311-200507

87246CHOSE, HEATER WATER, OUTLET C

main87245-44540iACM20,CLM20..EUR200105-200507

87248PIPE SUB-ASSY, WATER

main87248-44020iACM20,CLM20..RHD..EUR200105-200507

main87248-44040iACM20,CLM20..LHD200105-200507

87248APIPE, HEATER WATER INLET, A

main87248-44030iACM20,CLM20..RHD..EUR200105-200408

main87248-44050iACM20,CLM20..LHD200105-200408

main87248-44060iACM20..LHD200310-200408

main87248-44190iACM20,CLM20..RHD..EUR200408-200507

main87248-44200iACM20..LHD200408-200507

main87248-44210iCLM20..LHD200408-200507

8724144050CONTROLLER, WATER VALVE

main87241-44050

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52060

9017906032

main90179-06032

9017906306

main90179-06306

9046622004

main90466-22004

9046720011

main90467-20011

9046721010

main90467-21010

9048001405

main90480-01405

91651B0650

main91651-B0650

23 parts on this diagram · 17 diagrams in section
