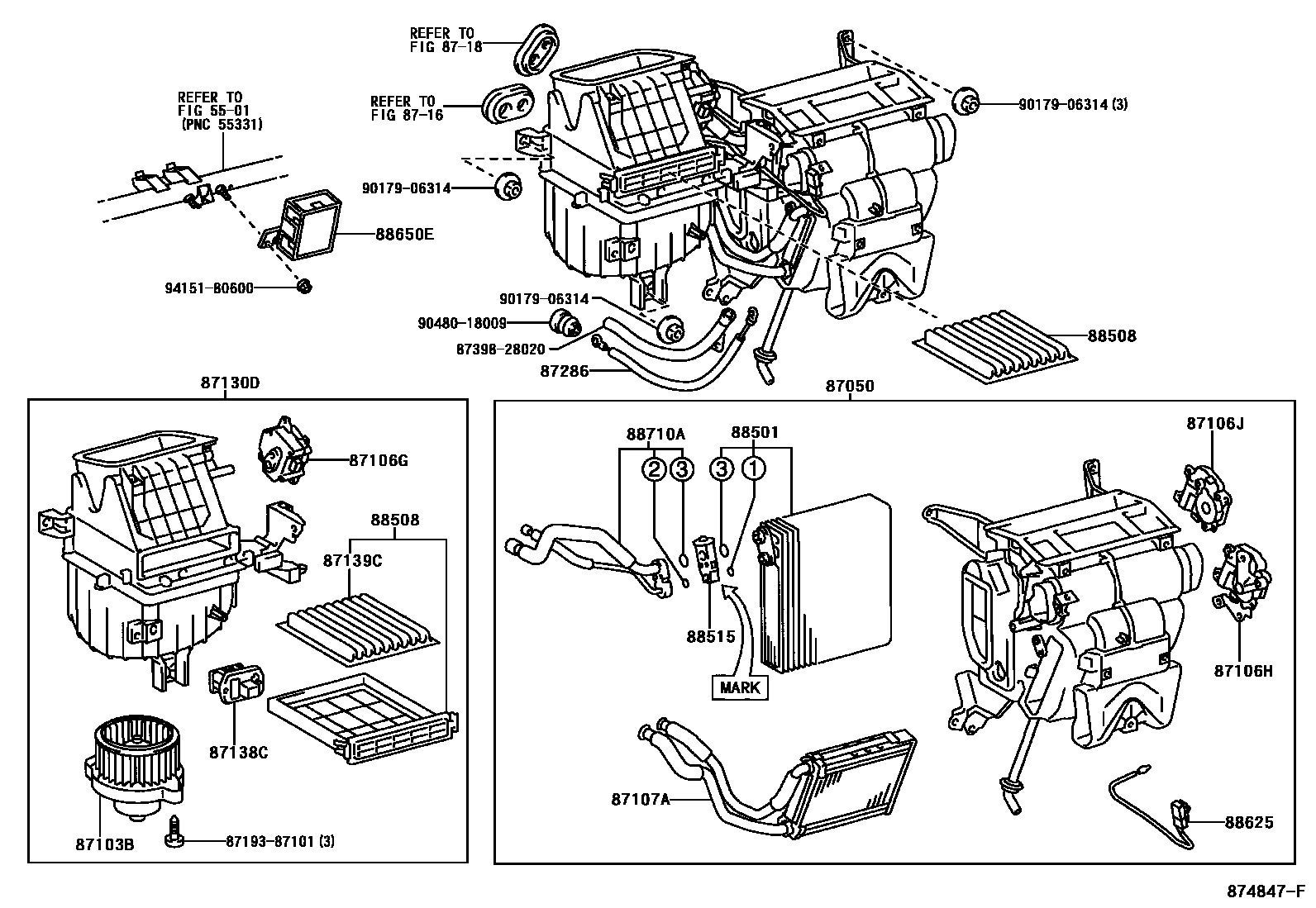

Toyota PICNIC/AVENSIS VERSO — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT--W(HEATER AIR INLET MOD0005 1FRONT 0006 1FRONT 0007 1FRONT, MANUAL AIR CONDITIONER0008 1FRONT, MANUAL A/C, W(REAR HEA0009 1FRONT, AUTO AIR CONDITIONER 0010 1FRONT, AUTO A/C, W(REAR HEATE0011 1FRONT, MANUAL AIR CONDITIONER0012 1FRONT, AUTO AIR CONDITIONER 0013 1REAR 0014 1REAR 0015 1O RING

5501

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28430iACM20..RHD200310

main87050-44260iACM20..RHD200105-200310

W(MANUAL AIR CONDITIONER)

main87050-44270iCLM20..RHD200105-200310

W(MANUAL AIR CONDITIONER)

main87050-44280iACM20..RHD..EUR200105-200310

main87050-44290iCLM20..RHD200105-200310

main87050-44300iACM20..LHD200105-200310

W(MANUAL AIR CONDITIONER)

main87050-44310iCLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER)

main87050-44320iACM20..LHD200105-200204

COLD SPEC & W(MANUAL AIR CONDITIONER)

sub87050-44321

main87050-44321iACM20..LHD200204-200310

COLD SPEC & W(MANUAL AIR CONDITIONER)

main87050-44330iCLM20..LHD200105-200204

COLD SPEC & W(MANUAL AIR CONDITIONER)

sub87050-44331

main87050-44331iCLM20..LHD200204-200310

COLD SPEC & W(MANUAL AIR CONDITIONER)

main87050-44340iACM20..LHD200105-200507

main87050-44350iCLM20..LHD200105-200507

main87050-44360iACM20..LHD200105-200204

COLD SPEC

sub87050-44361

main87050-44361iACM20..LHD200310-200507

W/O(AIR CONDITIONER) & W(REAR HEATER)

main87050-44361iACM20..LHD200204-200310

COLD SPEC

main87050-44370iCLM20..LHD200105-200204

COLD SPEC

sub87050-44371

main87050-44371iCLM20..LHD200204-200507

COLD SPEC

main87050-44410iCLM20..LHD200310-200507

W(AUTO AIR CONDITIONER & REAR HEATER)

main87050-44420iCLM20..RHD200310-200507

main87050-44430iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER)

main87050-44440iCLM20..LHD200310-200507

W(AUTO AIR CONDITIONER)

main87050-44450iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER & REAR HEATER)

main87050-44460iACM21200310

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-44030iACM2#..RHD200105-200310

main87103-44040iCLM20..RHD200105-200507

main87103-44050iACM20..LHD200105-200507

main87103-44060iCLM20..LHD200310-200507

W(REAR HEATER)

main87103-44060iCLM20..LHD200105-200310

W(HEATER AIR INRET MODE)

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-44040iACM20..RHD200105-200310

main87106-44050iCLM20..RHD200105-200507

main87106-44080iACM20..LHD200105-200507

main87106-44090iACM20..LHD200105-200310

W(HEATER AIR INRET MODE)

main87106-44090iCLM20..LHD200310-200507

W(REAR HEATER)

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-44030iACM20,CLM20..RHD200105-200310

main87106-44070iACM20,CLM20..LHD200105-200507

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-44020iACM2#,CLM20..RHD200105-200310

main87106-44060iACM20,CLM20..LHD200105-200507

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28290iACM2#..RHD200202-200310

main87107-44100iACM20,CLM20..RHD200105-200507

main87107-44120iACM20,CLM20..LHD200105-200507

main87107-44130iACM20..LHD200105-200507

W(REAR HEATER)

main87107-44140iCLM20..LHD200105-200507

W(REAR HEATER)

87130DBLOWER ASSY

main87130-44060iACM2#..RHD200310

main87130-44070iCLM20..RHD200105-200310

W(MANUAL AIR CONDITIONER)

main87130-44070iCLM20..RHD200310-200507

main87130-44080iACM20..RHD200105-200310

W(MANUAL AIR CONDITIONER)

main87130-44090iACM20..LHD200105-200310

W(MANUAL AIR CONDITIONER)

main87130-44100iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER & REAR HEATER)

main87130-44100iACM20,CLM20..LHD200105-200310

W(HEATER AIR INRET MODE & MANUAL AIR CONDITIONER)

main87130-44100iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER)

main87130-44110iACM20..RHD..EUR200105-200310

main87130-44120iCLM20..RHD200105-200310

main87130-44130iACM20..LHD200310-200507

W/O(AIR CONDITIONER)

main87130-44130iACM20..LHD200105-200310

main87130-44140iACM20..LHD200310-200507

W/O(AIR CONDITIONER)

main87130-44140iACM20..LHD200310-200507

W/O(AIR CONDITIONER) & W(REAR HEATER)

main87130-44140iACM20,CLM20..LHD200105-200310

W(HEATER AIR INRET MODE)

main87130-44160iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER)

87138CRESISTOR, BLOWER

main87138-20350iACM20..RHD200105-200310

main87138-20360iACM20..LHD200105-200507

main87138-28210iCLM20200105-200310

W(HEATER AIR INRET MODE)

main87138-28210iCLM20..LHD200310-200507

W(REAR HEATER)

87139CFILTER, CLEAN AIR

main87139-47010iACM20,CLM20200105-200310

8716

8718

87286CABLE, CONTROL

main87286-44020iACM20,CLM20..LHD200204-200507

main87286-44040iACM20,CLM20..RHD..EUR200105-200507

main87286-44050iACM20,CLM20..LHD200105-200204

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28310iACM20,CLM20..RHD200105-200310

main88501-28320iACM20,CLM20..LHD200105-200507

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20120iACM20,CLM20200105-200310

main88880-20090iACM20,CLM20..EUR200105-200310

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-28160iACM20,CLM20200108-200310

MAKER OPTION,MARK Z

main88515-28160iACM20,CLM20200310

main88515-28180iACM21200310

main88515-44020iACM20,CLM20..EUR200108-200310

DEALER OPTION,MARK A

sub88515-28160

main88515-44020iACM20,CLM20200105-200108

MARK A

sub88515-28160

88625THERMISTOR, COOLER, NO.1

main88625-48030iACM21200310

main88625-52020iACM20,CLM20200105-200310

MAKER OPTION

main88625-52020iACM20,CLM20200310

main88625-60140iACM20,CLM20..EUR200105-200310

DEALER OPTION

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-44170iACM20..RHD200105-200310

main88650-44180iCLM20..RHD200105-200310

main88650-44190iACM20..LHD200105-200507

main88650-44200iACM20..LHD200105-200310

W(HEATER AIR INRET MODE)

main88650-44200iACM20..LHD200310-200507

W(REAR HEATER)

main88650-44210iCLM20..LHD200105-200507

88710ATUBE ASSY, AIR CONDITIONER

main88710-44450iACM2#,CLM20..RHD200105-200310

main88710-44460iACM20,CLM20..LHD200105-200507

8719387101

main87193-87101

8739828020BAND ASSY (FOR COMBUSTION HEATER)

main87398-28020

9017906314

main90179-06314

9048018009

main90480-18009

9415180600

main94151-80600

24 parts on this diagram · 15 diagrams in section
